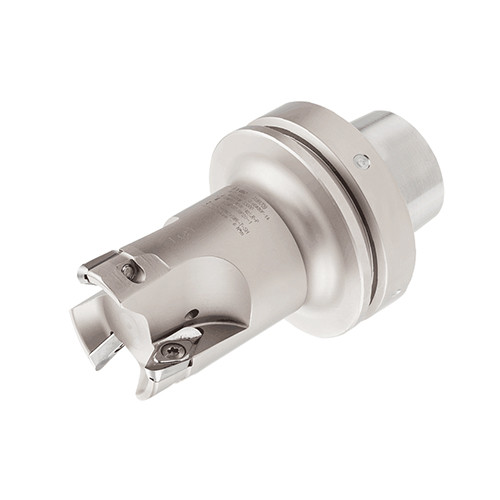

HSM90S EALD2-2-HSK80FM-14
Endmills for machining aluminum at high RPM, carrying inserts with a special pocket design for high resistance to centrifugal forces. Feature integral HSK FM type shanks for Makino machine models MAG series A flange-pin spindles

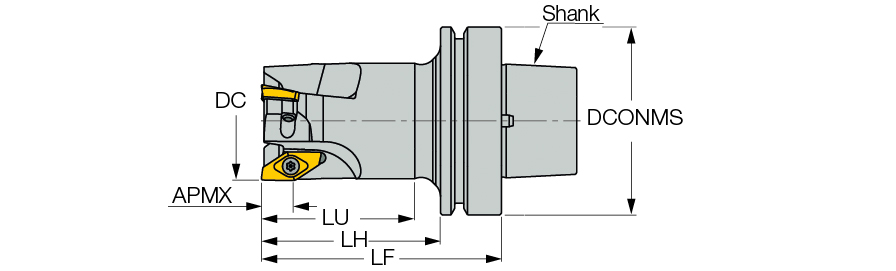

| Cutting Diameter (DC/DCX) | 2″ | Functional Length (LF) | 4″ |
| Cutting Diameter (DC) | 2″ | Tool Type | 90° Indexable for Aluminum |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 2.57″ |
| Depth of Cut Maximum (APMX) | 0.531″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 5.26″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | HSK FM | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 8 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3.149″ | Body Material | Steel |
| Master Insert Identification (MIID) | HSM90S APCR 140508R-P | Connection Code Machine Side (CCMS) | HSK |
| Head Length (LH) | 3″ | Unit | I |
Product Features
| Family Description | Endmills for machining aluminum at high RPM, carrying inserts with a special pocket design for high resistance to centrifugal forces. Feature integral HSK FM type shanks for Makino machine models MAG series A flange-pin spindles | FamilyName | HSM90S EAL-HSK-FM-14 |
| Remarks | When machining at very high cutting speeds (RPM>15000) and replacing the insert, it is also recommended to replace the screw Insert tightening torque: 53 (lbf x in) For inserts size 14 with a corner radius larger than .2, the corner of the pocket must conform to the formula (R body = R insert + .02) | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
4.9935
Name
Indexable End Mills
FamilyName
HSM90S EAL-HSK-FM-14
BrandName
Iscar
