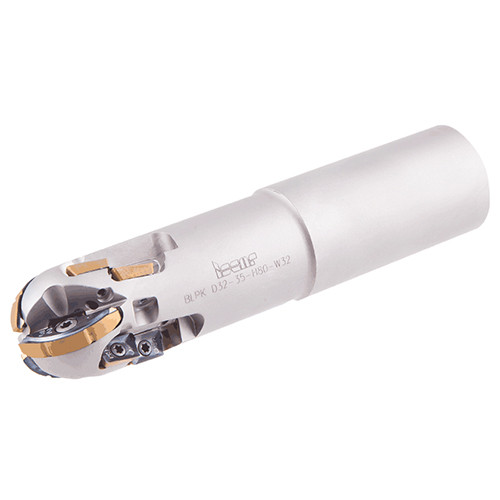

BLPK D32-35-H80-W32
Three flute fully effective long edged, ball nose endmills. Designed for rough and semi-finish milling of sculptured surfaces, especially with steep and perpendicular profiles. Can be used for up and down ramping.

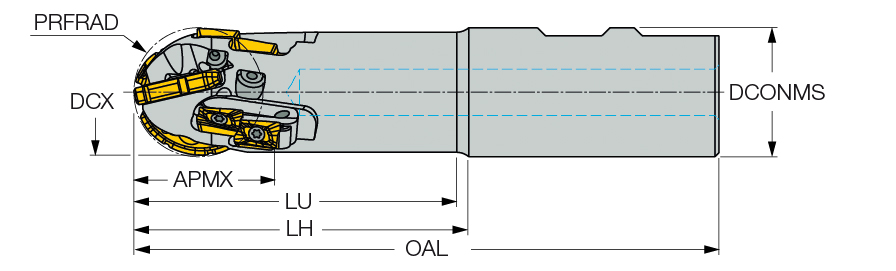

| Cutting Diameter (DC/DCX) | 32 mm | Usable Length (LU) | 80 mm |
| Cutting Diameter (DC) | 32 mm | Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 9 | Corner Radius (RE) | 16 mm |
| Depth of Cut Maximum (APMX) | 35 mm | Body Half Taper Angle (BHTA) | 180 Degrees |
| Overall Length (OAL) | 145 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Measurement Type | Metric |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Connection Code Machine Side (CCMS) | Weldon |
| Head Length (LH) | 83 mm | Unit | M |
| Tool Type | Ball nose endmills |
Product Features
| Family Description | Three flute fully effective long edged, ball nose endmills. Designed for rough and semi-finish milling of sculptured surfaces, especially with steep and perpendicular profiles. Can be used for up and down ramping. | FamilyName | BLPK |

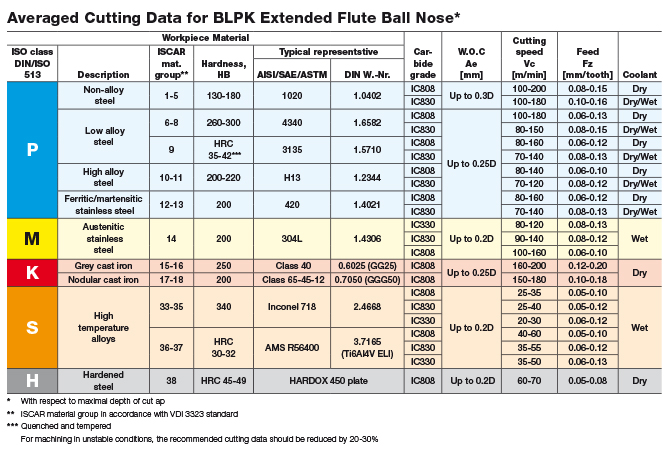

| Remarks | For detailed cutting recommendations and adaptation, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.8060
Name
Indexable End Mills
FamilyName
BLPK
BrandName
Iscar
