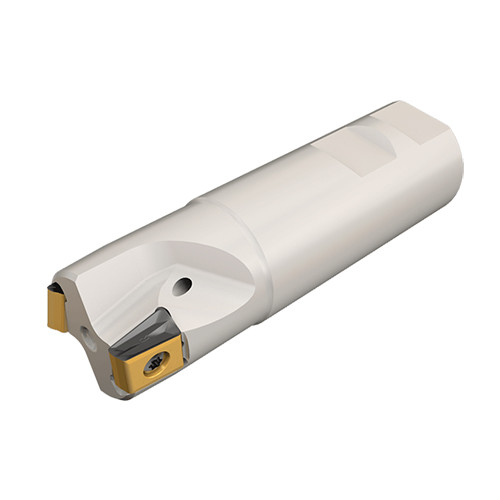

T490 ELN D1.25-3-C125-13B
90° endmills carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical, .490″ long cutting edges (HELITANGT490 Line).

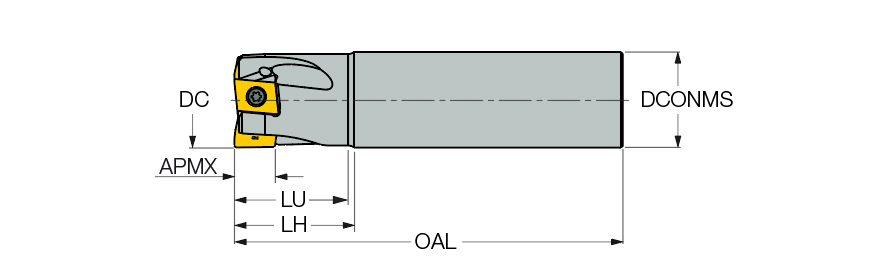

| Cutting Diameter (DC/DCX) | 1-1/4″ | Functional Length (LF) | 9.84″ |
| Cutting Diameter (DC) | 1-1/4″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 3 | Usable Length (LU) | 1.85″ |
| Depth of Cut Maximum (APMX) | 0.49″ | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 9.84″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | T490 LNMT 1306PNTR | Connection Code Machine Side (CCMS) | Cylindrical |
| Head Length (LH) | 1.97″ | Unit | I |
Product Features
| Family Description | 90° endmills carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical, .490″ long cutting edges (HELITANGT490 Line). | FamilyName | T490 ELN-13 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
3.5142
Name
Indexable End Mills
FamilyName
T490 ELN-13
BrandName
Iscar
