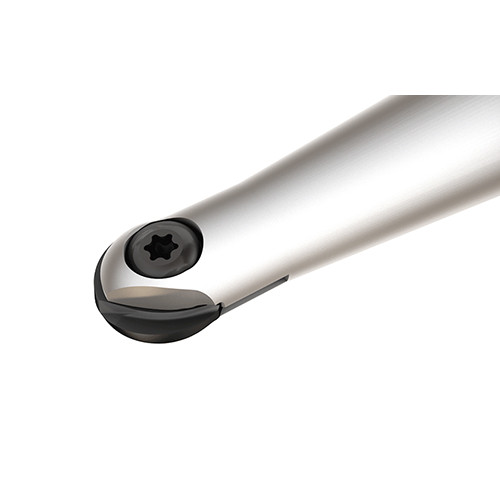

HCM D.75-A-L6.0-C.75
Ball nose multifunction endmills D=.750″ (BALLPLUS). Each tool can carry various milling insert geometries.

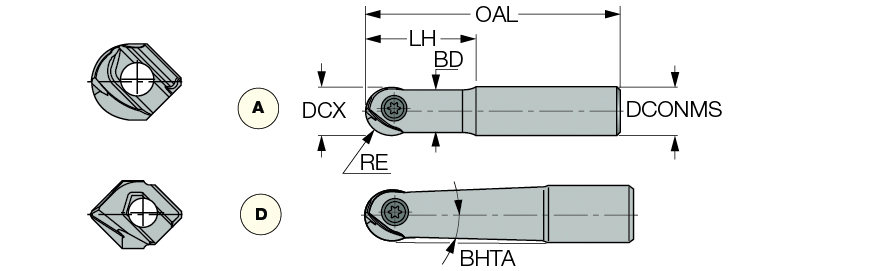

| Cutting Diameter (DC/DCX) | 3/4″ | Flute Count (NOF) | 2 |
| Cutting Diameter (DC) | 3/4″ | Torque (TQ) | 12 lbfxin |
| Cutting Item Count (CICT) | 1 | Body Diameter (BD) | 0.673″ |
| Depth of Cut Maximum (APMX) | 0.528″ | Corner Radius (RE) | 3/8″ |
| Overall Length (OAL) | 6″ | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Front Type | A |
| Application | | Countersinking | Drill Mill | Profiling | Slanted Shoulder & Chamfer | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | HBR D.75-QF | Body Material | Steel |
| Head Length (LH) | 2.4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Tool Type | Ball nose endmills | Unit | I |
| Usable Length (LU) | 2.4″ |
Product Features
| Family Description | Ball nose multifunction endmills D=.750″ (BALLPLUS). Each tool can carry various milling insert geometries. | FamilyName | HCM D.75 |
| Remarks | The dimensions are for HBR inserts Insert screw tightening torque 105-110 lbfxin For adaptation click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.8598
Name
Indexable End Mills
FamilyName
HCM D.75
BrandName
Iscar
