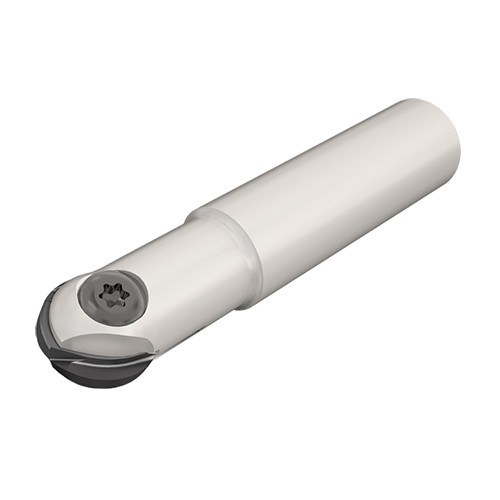

HCM D16-A-L130-C16
Ball nose multifunction endmills D=16 mm (BALLPLUS). Each tool can carry various milling insert geometries.

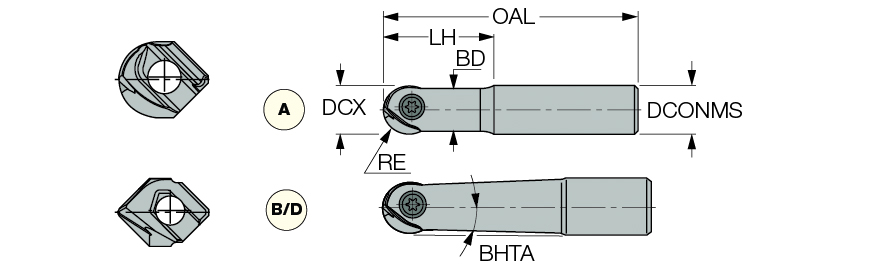

| Cutting Diameter (DC/DCX) | 16 mm | Flute Count (NOF) | 2 |
| Cutting Diameter (DC) | 16 mm | Torque (TQ) | 7.8 Nxm |
| Cutting Item Count (CICT) | 1 | Body Diameter (BD) | 14.4 mm |
| Depth of Cut Maximum (APMX) | 10.3 mm | Corner Radius (RE) | 8 mm |
| Overall Length (OAL) | 130 mm | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Front Type | A |
| Application | | Countersinking | Drill Mill | Profiling | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | HBR D160-QF | Body Material | Steel |
| Head Length (LH) | 36 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Tool Type | Ball nose endmills | Unit | M |
Product Features
| Family Description | Ball nose multifunction endmills D=16 mm (BALLPLUS). Each tool can carry various milling insert geometries. | FamilyName | HCM D16 |
| Remarks | The dimensions are for HBR inserts For adaptation click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2930
Name
Indexable End Mills
FamilyName
HCM D16
BrandName
Iscar
