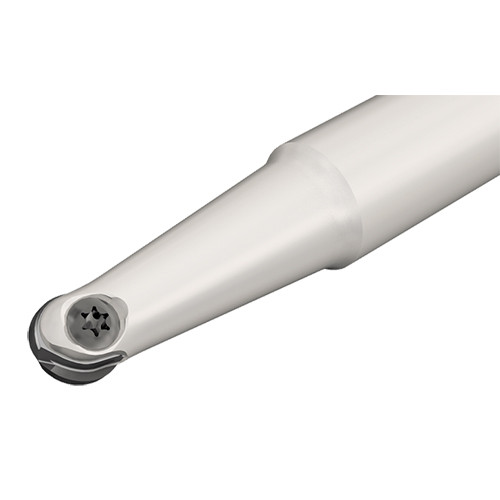

HCM D10-B-L125-C16
Ball nose multifunction endmills D=10 mm (BALLPLUS). Each tool can carry various milling insert geometries.

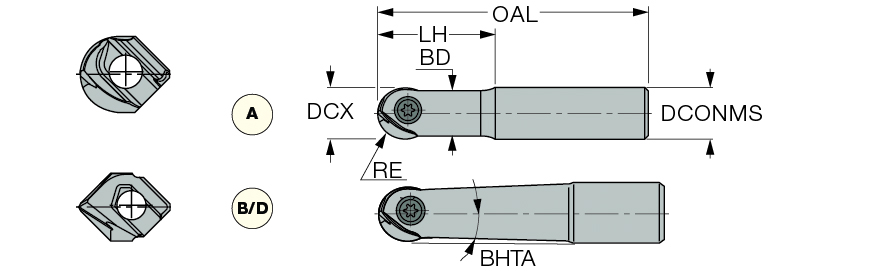

| Cutting Diameter (DC/DCX) | 10 mm | Flute Count (NOF) | 2 |
| Cutting Diameter (DC) | 10 mm | Torque (TQ) | 5.3 Nxm |
| Cutting Item Count (CICT) | 1 | Corner Radius (RE) | 5 mm |
| Depth of Cut Maximum (APMX) | 6.7 mm | Body Half Taper Angle (BHTA) | 6 Degrees |
| Overall Length (OAL) | 125 mm | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Front Type | B |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Profiling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Body Material | Steel |
| Master Insert Identification (MIID) | HBR D100-QF | Connection Code Machine Side (CCMS) | Cylindrical |
| Head Length (LH) | 40 mm | Unit | M |
| Tool Type | Ball nose endmills |
Product Features
| Family Description | Ball nose multifunction endmills D=10 mm (BALLPLUS). Each tool can carry various milling insert geometries. | FamilyName | HCM D10 |
| Remarks | The dimensions are for HBR insert For adaptation click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2490
Name
Indexable End Mills
FamilyName
HCM D10
BrandName
Iscar
