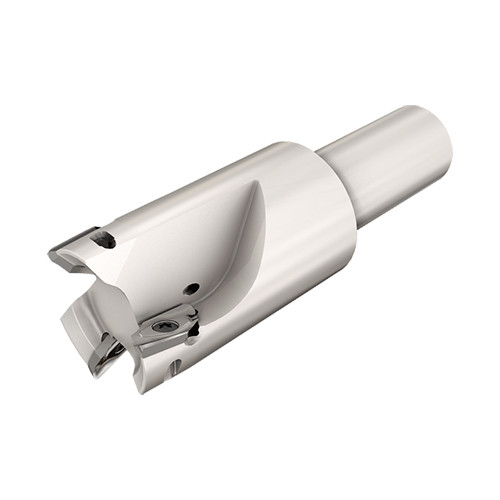

HM90 EAL-D125-C125L9-16
Long reach endmills carrying HM90 APCR 1605 inserts for machining aluminum.

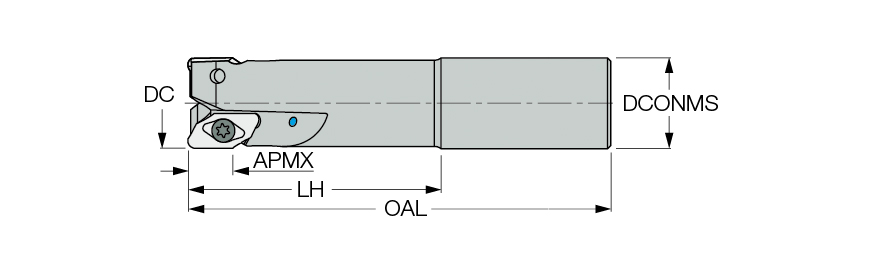

| Cutting Diameter (DC/DCX) | 1-1/4″ | Tool Type | 90° Indexable for Aluminum |
| Cutting Diameter (DC) | 1-1/4″ | Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 2 | Corner Radius (RE) | 0.177″ |
| Depth of Cut Maximum (APMX) | 0.61″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 9″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 22.4 Degrees | Measurement Type | Inch |
| Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Body Material | Steel |

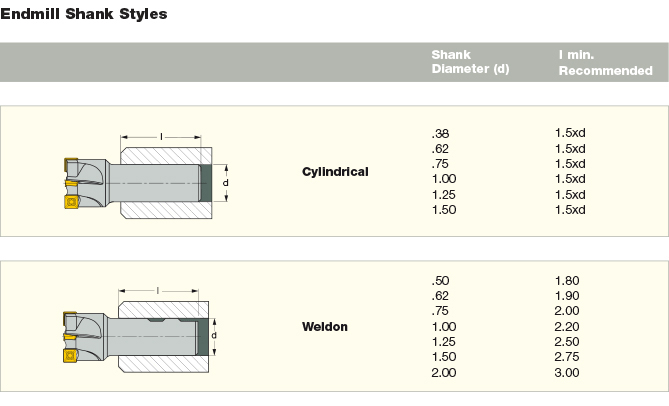

| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Master Insert Identification (MIID) | HM90 APCR 160502R-P | Unit | I |
Product Features
| Family Description | Long reach endmills carrying HM90 APCR 1605 inserts for machining aluminum. | FamilyName | HM90 EAL-16 |
| Remarks | Insert tightening torque: 53 lbf x in HM90 APCR 1605..R-P inserts with corner radii .126 and .157 require pocket modification, corners larger than .177 should be used only on BR tools. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.8616
Name
Indexable End Mills
FamilyName
HM90 EAL-16
BrandName
Iscar
