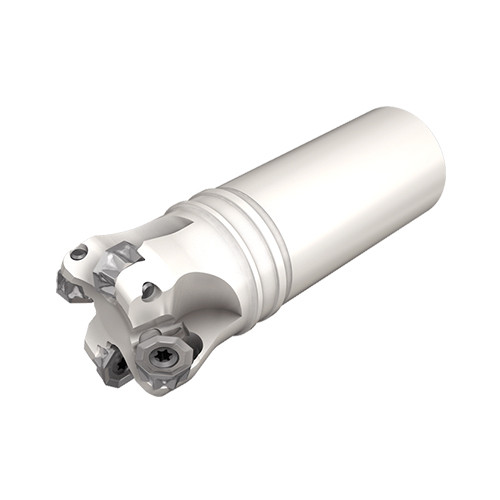

ECM D1.50-W1.25-11
CHAMMILL endmills for four insert shapes. Part of the CHAMELEON multi-functional line.

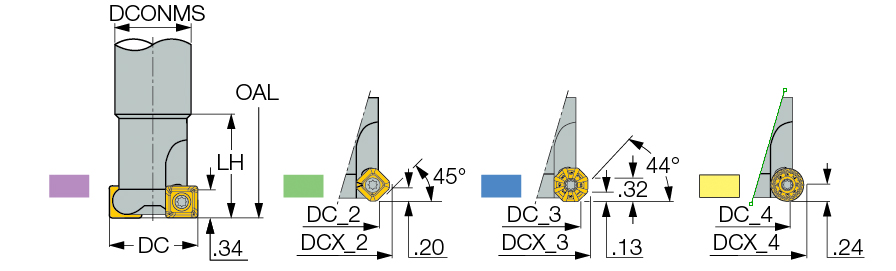

| Cutting Item Count (CICT) | 4 | Tool Type | Chamfering endmills |
| Depth of Cut Maximum (APMX) | 0.34″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 4″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 5.9 Degrees | Measurement Type | Inch |
| Application | | Profiling | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Connection Code Machine Side (CCMS) | Weldon |
| Master Insert Identification (MIID) | S90MT | Unit | I |
| Head Length (LH) | 1-1/2″ |
Product Features

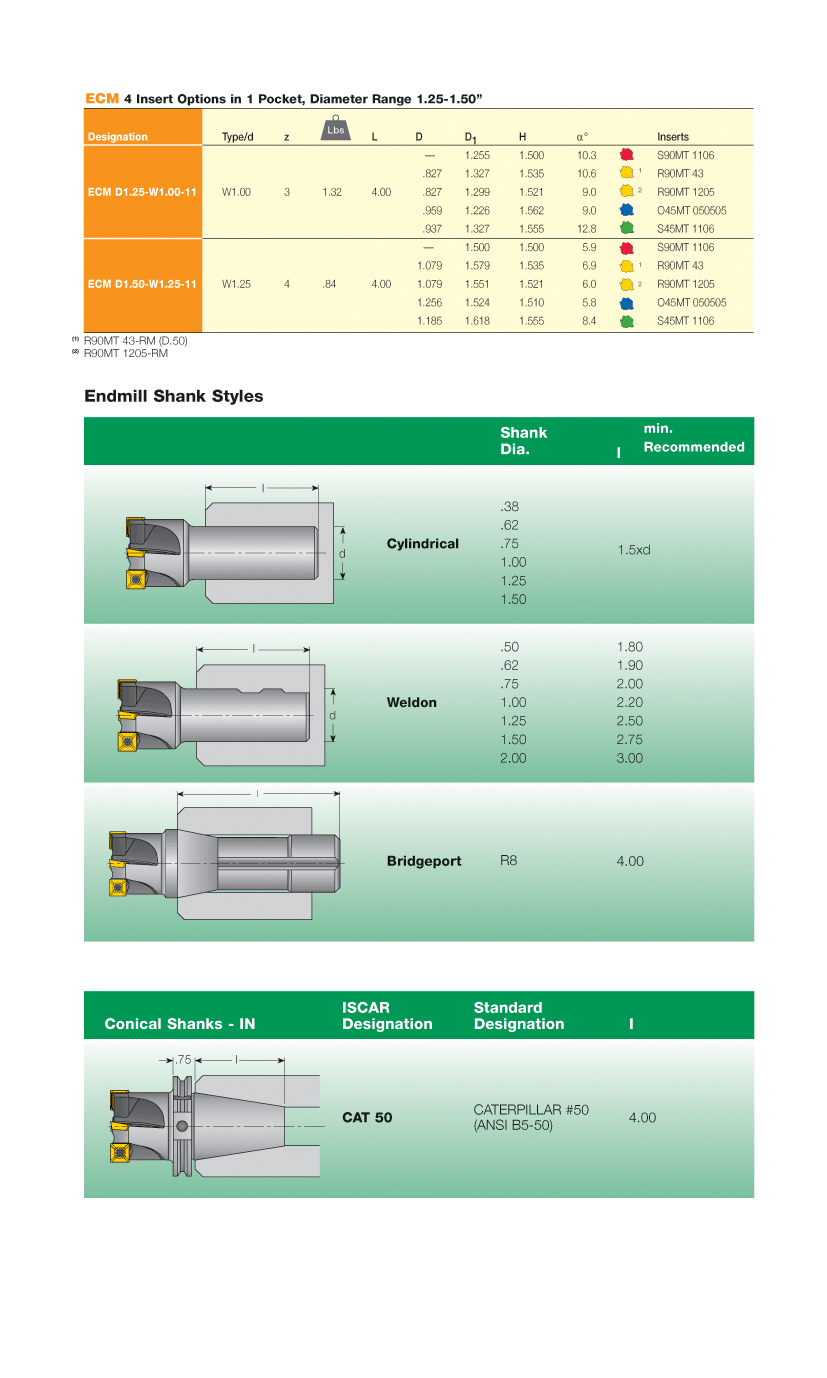

| Family Description | CHAMMILL endmills for four insert shapes. Part of the CHAMELEON multi-functional line. | FamilyName | ECM |
| Remarks | The displayed data refers to S90MT inserts. For other combinations see More Info. For adaptation click on More Info. | BrandName | Iscar |
| COO | Turkey |
Shipping Info
Weight per item
1.5653
Name
Indexable End Mills
FamilyName
ECM
BrandName
Iscar
