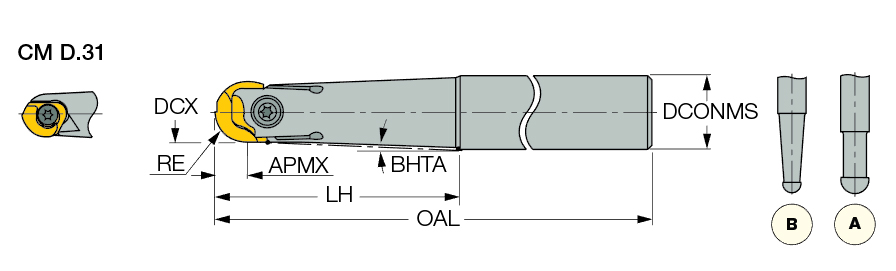

| Cutting Diameter (DC/DCX) | 5/8″ | Head Length (LH) | 2-1/2″ |
| Cutting Diameter (DC) | 5/8″ | Tool Type | Ball nose endmills |
| Cutting Item Count (CICT) | 2 | Corner Radius (RE) | 0.315″ |
| Depth of Cut Maximum (APMX) | 0.37″ | Body Half Taper Angle (BHTA) | 2 Degrees |
| Overall Length (OAL) | 6″ | Front Type | B |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 90 Degrees | Measurement Type | Inch |
| Application | | Profiling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Unit | I |
Product Features

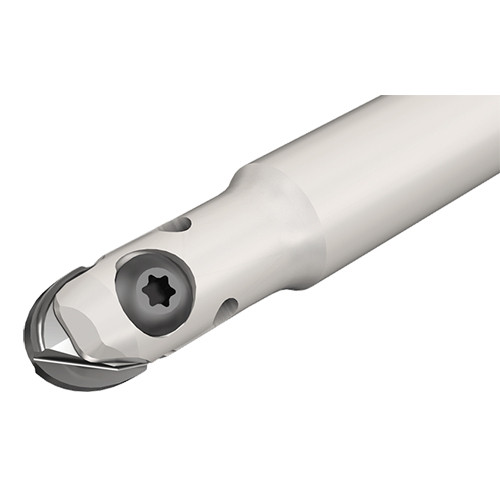

| Family Description | Ball nose endmills (HELIBALL). | FamilyName | CM D.31-1.00 |
| Remarks | For adaptation, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.8510
Name
Indexable End Mills
FamilyName
CM D.31-1.00
BrandName
Iscar
