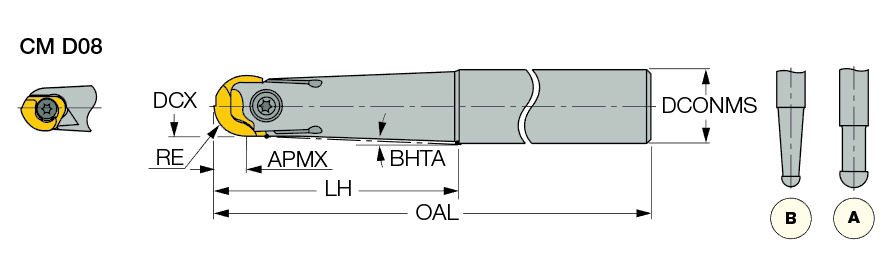

| Cutting Diameter (DC/DCX) | 8 mm | Head Length (LH) | 25 mm |
| Cutting Diameter (DC) | 8 mm | Tool Type | Ball nose endmills |
| Cutting Item Count (CICT) | 1 | Corner Radius (RE) | 4 mm |
| Depth of Cut Maximum (APMX) | 5.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 80 mm | Front Type | A |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 90 Degrees | Measurement Type | Metric |
| Application | | Profiling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Unit | M |
| Master Insert Identification (MIID) | CR D080-MS |
Product Features

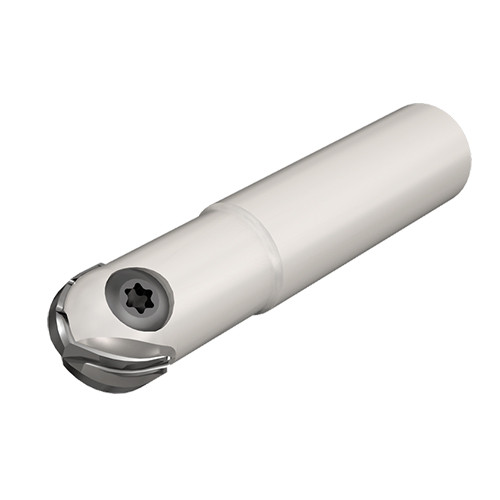

| Family Description | Ball nose endmills D=8-20 mm (HELIBALL). | FamilyName | CM D08-20 |
| Remarks | For adaptation, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0770
Name
Indexable End Mills
FamilyName
CM D08-20
BrandName
Iscar
