S50W PCLNR-19

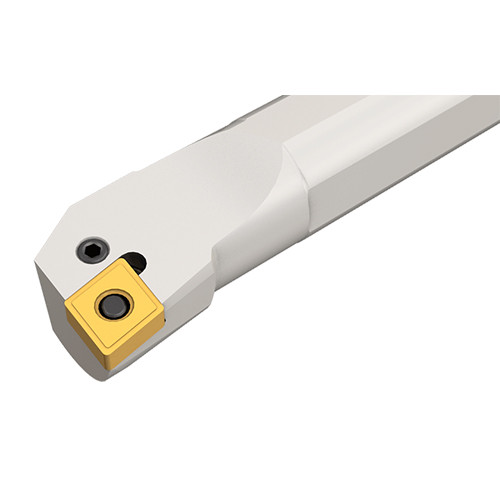

Lever lock boring bars carrying negative 80° rhombic inserts.

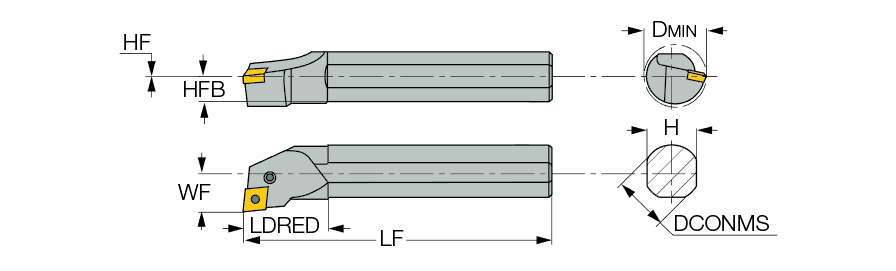

| Connection Diameter Machine Side (DCONMS) | 50 mm | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 450 mm | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 70 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 47 mm | Rake Angle Radial (GAMF) | -8.5 Degrees |
| Functional Width (WF) | 35 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CNMG 1906.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 63 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
Product Features
| Family Description | Lever lock boring bars carrying negative 80° rhombic inserts. | FamilyName | A/S-PCLNR/L |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
6.5480
Name
Indexable Internal Turning Tools
FamilyName
A/S-PCLNR/L
BrandName
Iscar
