A20Q PCLNR-09G
Lever lock boring bars carrying negative CNMX/CNMG 80° rhombic inserts, for heavy internal turning applications.

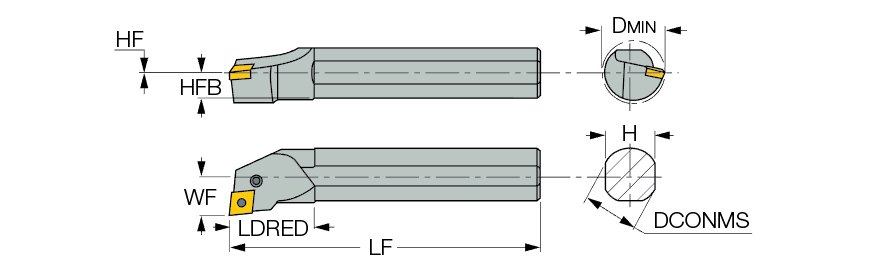

| Connection Diameter Machine Side (DCONMS) | 20 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 180 mm | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 30 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 18 mm | Rake Angle Radial (GAMF) | -14 Degrees |
| Functional Width (WF) | 13 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CNMG 0904.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 25 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
Product Features
| Family Description | Lever lock boring bars carrying negative CNMX/CNMG 80° rhombic inserts, for heavy internal turning applications. | FamilyName | A/S-PCLNR/L-X/G |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.3550
Name
Indexable Internal Turning Tools
FamilyName
A/S-PCLNR/L-X/G
BrandName
Iscar
