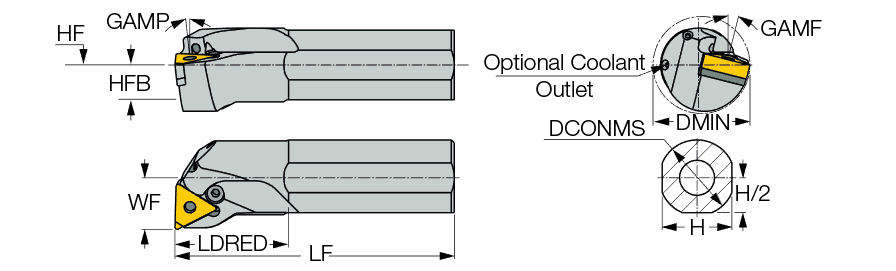

| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 10″ | Application | | Int. 60° Triangle 91° Approach | |
| Reduced Body Diameter Length (LDRED) | 1.6″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 1.1″ | Rake Angle Radial (GAMF) | -12 Degrees |
| Functional Width (WF) | 0.8″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TNMX 34. TNMG 33. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.55″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Unit | I |
Product Features
| Family Description | 91° lead angle lever lock boring bars carrying negative TNMX or TNMG triangular inserts. | FamilyName | A-PTFNR/L-X/G |
| Remarks | Use TTX 3 seat for TNMX 34. inserts and TTN 3 seat for TNMG 33. inserts | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.9432
Name
Indexable Internal Turning Tools
FamilyName
A-PTFNR/L-X/G
BrandName
Iscar
