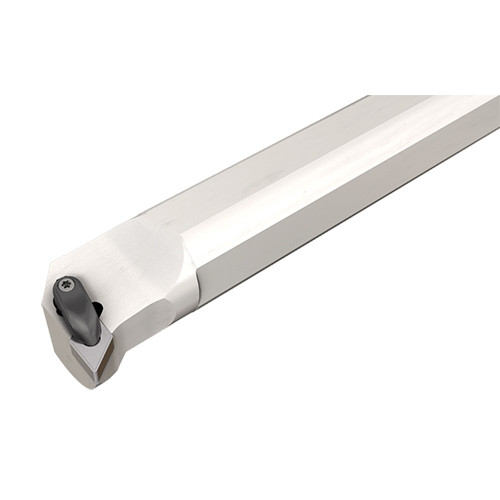

S32T DDUNL-15
R-Clamp boring bars carrying ISO negative DNMG inserts.

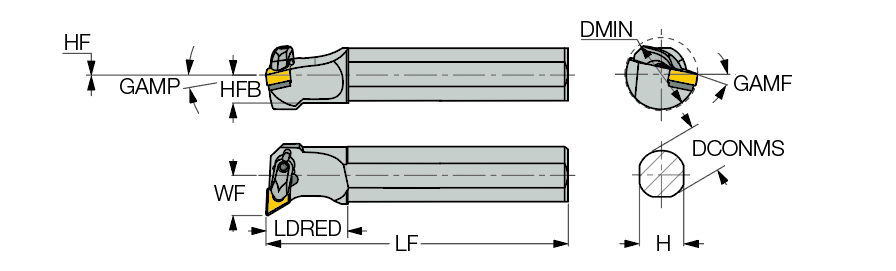

| Connection Diameter Machine Side (DCONMS) | 32 mm | Application | | Int. 55° Diamond 93 95° Approac | |
| Overall Length (OAL) | 300 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Reduced Body Diameter Length (LDRED) | 45 mm | Rake Angle Radial (GAMF) | -11 Degrees |
| Shank Height (H) | 29 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 22 mm | Body Material | Steel |
| Master Insert Identification (MIID) | DNMG 1506 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 42 mm | Unit | M |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | R-Clamp boring bars carrying ISO negative DNMG inserts. | FamilyName | S-DDUNR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.8190
Name
Indexable Internal Turning Tools
FamilyName
S-DDUNR/L
BrandName
Iscar
