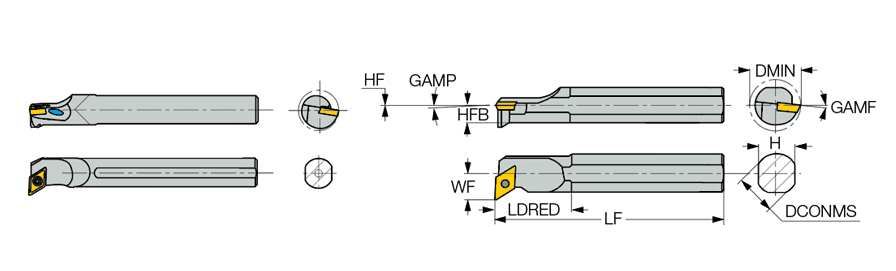

| Connection Diameter Machine Side (DCONMS) | 5/8″ | Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 8″ | Application | | Int. 55° Diamond 93 95° Approac | |
| Overall Length (OAL) | 8″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Reduced Body Diameter Length (LDRED) | 1-1/4″ | Rake Angle Radial (GAMF) | -8 Degrees |
| Shank Height (H) | 0.575″ | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 0.43″ | Body Material | Steel |
| Master Insert Identification (MIID) | DC.. 2 | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.787″ | Unit | I |
| Cutting Direction (HAND) | Right Hand |
Product Features

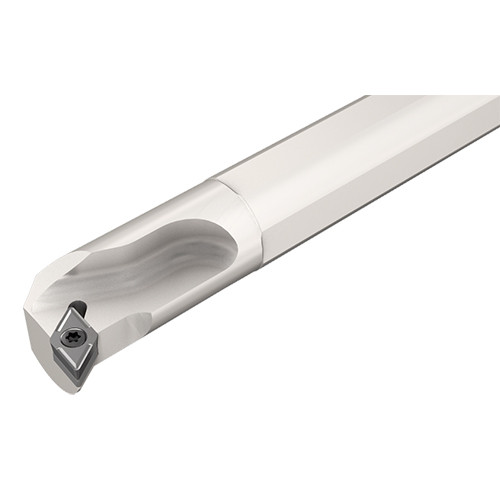

| Family Description | Screw lock boring bars for 55° rhombic inserts with 7° clearance. | FamilyName | A/E/S-SDUCR/L |
| Remarks | S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.7341
Name
Indexable Internal Turning Tools
FamilyName
A/E/S-SDUCR/L
BrandName
Iscar
