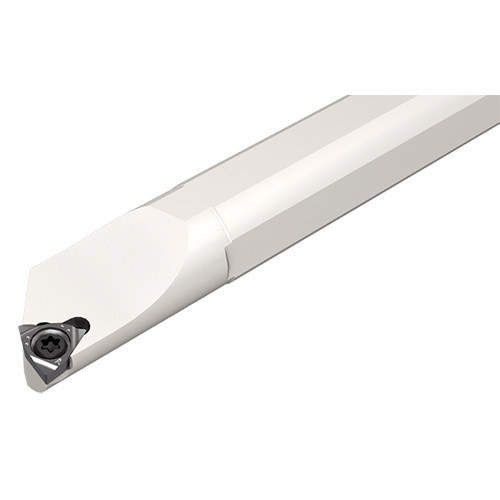

E10M SWUBR-06
Screw clamp miniature boring bars carrying small WBMT trigon inserts. S - Steel shank; E - Carbide shank with coolant hole.

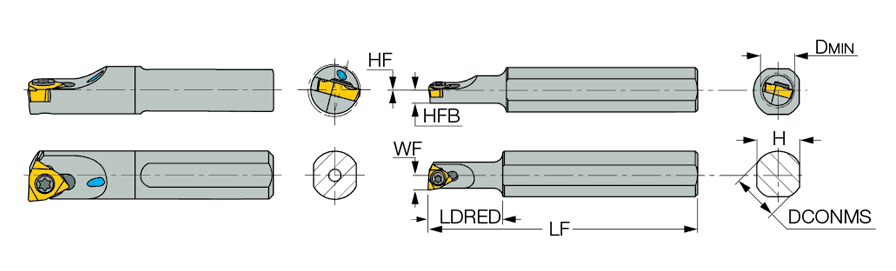

| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | | Int. 80° Trigon 93° Approach | |
| Overall Length (OAL) | 150 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 9 mm | Rake Angle Radial (GAMF) | -12 Degrees |
| Functional Width (WF) | 5.2 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WBMT 060101L | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 10.9 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Screw clamp miniature boring bars carrying small WBMT trigon inserts. S - Steel shank; E - Carbide shank with coolant hole. | FamilyName | E/S-SWUBR/L |
| Remarks | Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1540
Name
Indexable Internal Turning Tools
FamilyName
E/S-SWUBR/L
BrandName
Iscar
