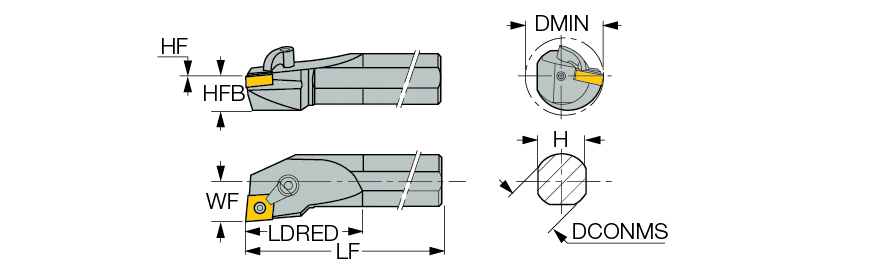

| Connection Diameter Machine Side (DCONMS) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 12″ | Application | | Int. 80° Diamond 95° Approach | |
| Overall Length (OAL) | 12″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Reduced Body Diameter Length (LDRED) | 1.57″ | Rake Angle Radial (GAMF) | -12 Degrees |
| Shank Height (H) | 0.906″ | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 0.64″ | Body Material | Steel |
| Master Insert Identification (MIID) | CN..43.. | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 1.4″ | Unit | I |
| Cutting Direction (HAND) | Right Hand |
Product Features

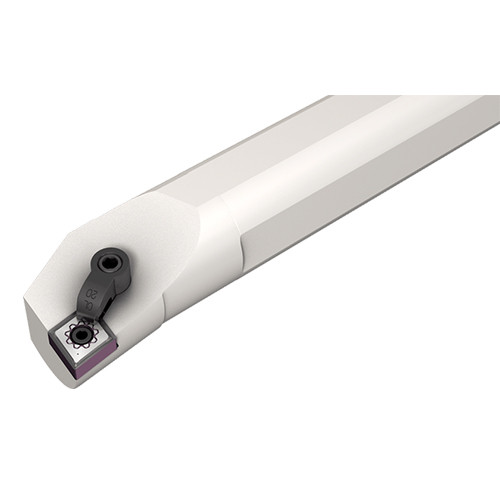

| Family Description | Comlock boring bars for negative 80° diamond inserts. | FamilyName | A-MCLNR/L |
| COO | USA | BrandName | Iscar |
Shipping Info
Weight per item
3.3069
Name
Indexable Internal Turning Tools
FamilyName
A-MCLNR/L
BrandName
Iscar
