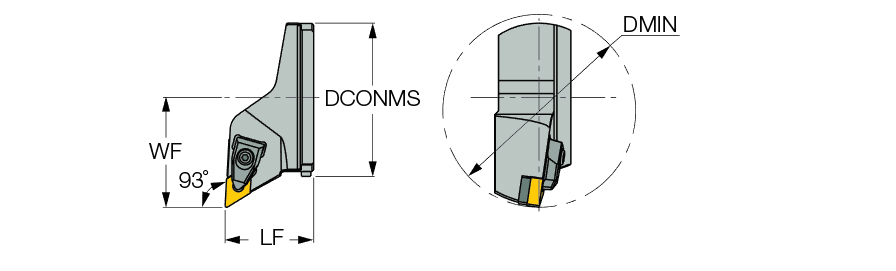

| Connection Diameter Machine Side (DCONMS) | 77 mm | Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 46 mm | Application | | Int. 55° Diamond 93 95° Approac | |
| Functional Width (WF) | 57 mm | Body Material | Steel |
| Master Insert Identification (MIID) | DNMG 442-F3M | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 100 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features

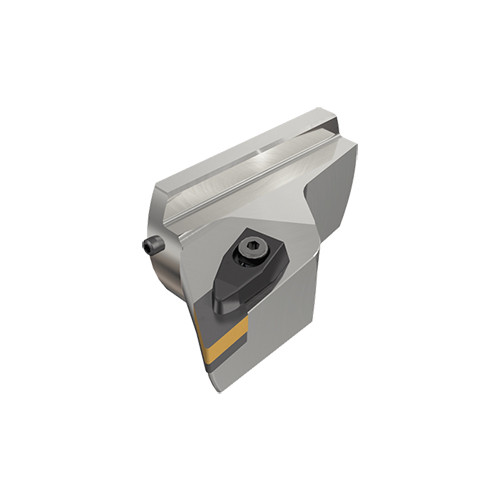

| Family Description | Interchangeable boring heads carrying 55° rhombic inserts. | FamilyName | AVC-DDUNR/L-VH |
| COO | China | BrandName | Iscar |
Shipping Info
Weight per item
0.5030
Name
Indexable Internal Turning Tools
FamilyName
AVC-DDUNR/L-VH
BrandName
Iscar
