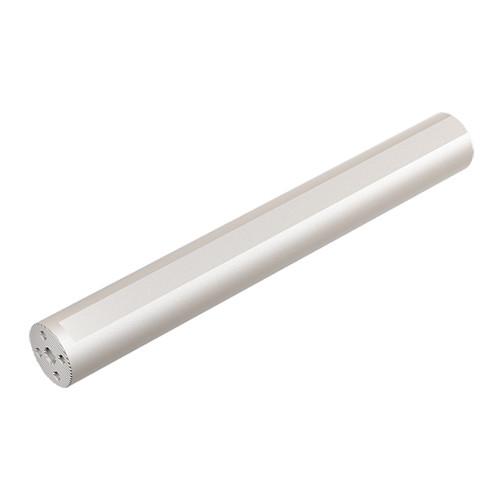

SH-D20-4D-A
Steel boring bars with serrated connection for AVC heads

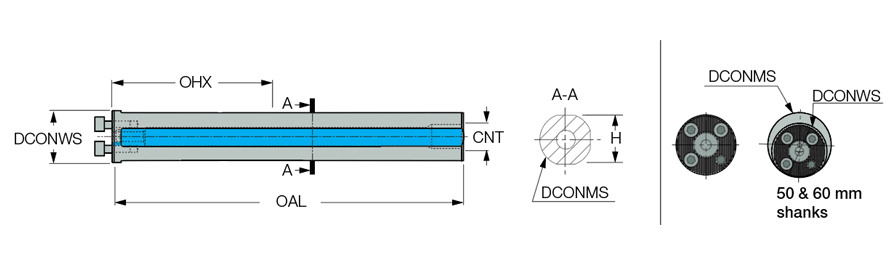

| Connection Diameter Machine Side (DCONMS) | 20 mm | Connection Diameter Workpiece Side (DCONWS) | 20 mm |
| Functional Length (LF) | 140 mm | Tool Type | Cylindrical Shanks |
| Overall Length (OAL) | 140 mm | Body Material | Steel |
| Shank Height (H) | 18 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
Product Features
| Family Description | Steel boring bars with serrated connection for AVC heads | FamilyName | SH-D |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.2930
Name
Indexable Internal Turning Tools
FamilyName
SH-D
BrandName
Iscar
