AVC-D20-SVUCR-11
Interchangeable boring heads Carrying 35° rhombic inserts with 7° clearance.

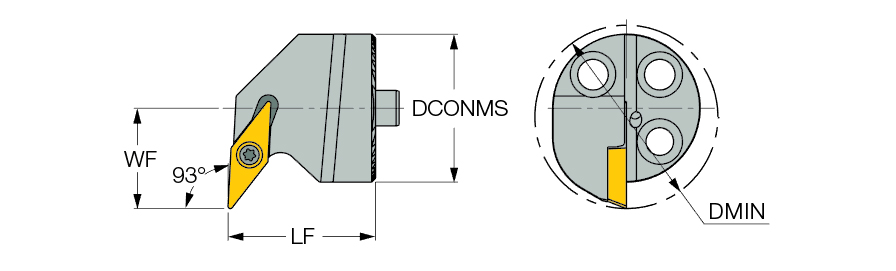

| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | | Int. 35° Diamond 93° Approach | |
| Functional Length (LF) | 20 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Width (WF) | 16 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Master Insert Identification (MIID) | VCMT 221-F3P | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 27 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | Interchangeable boring heads Carrying 35° rhombic inserts with 7° clearance. | FamilyName | AVC-SVUCR/L |
| COO | China | BrandName | Iscar |
Shipping Info
Weight per item
0.0210
Name
Indexable Internal Turning Tools
FamilyName
AVC-SVUCR/L
BrandName
Iscar
