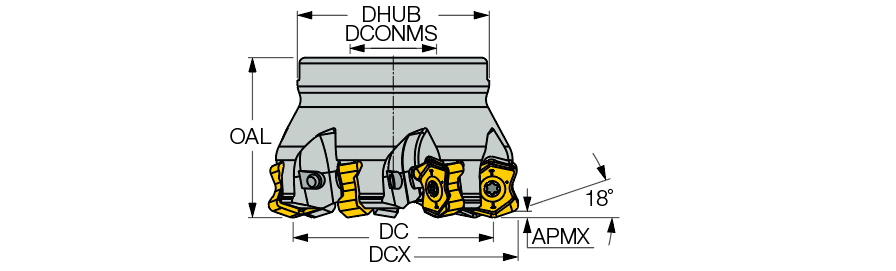

| Cutting Diameter (DC/DCX) | 2″ | Master Insert Identification (MIID) | FFX4 XNMU 080620T |
| Cutting Diameter (DC) | 1.386″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 2″ | Body Material | Steel |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.078″ | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 1-3/4″ | Tool Cutting Edge Angle (KAPR) | 18 Degrees |
| Hub Diameter (DHUB) | 1.85″ | Unit | I |
| Arbor Style | A |
Product Features

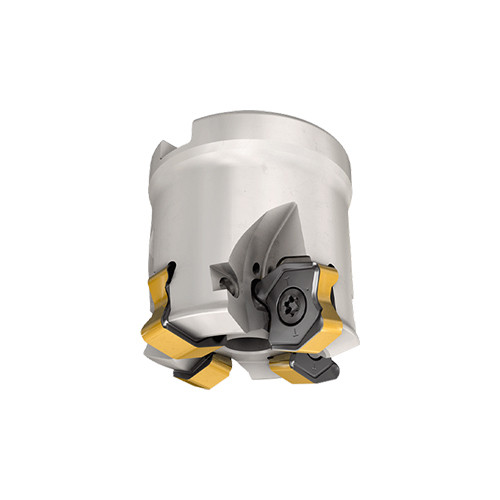

| Family Description | Face mills carrying double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets and face milling. | FamilyName | FFX4 FD-08 |
| Remarks | For adaptation, click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC Radius programming for insert XNMU .153 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.1640
Name
Indexable Face Mills
FamilyName
FFX4 FD-08
BrandName
Iscar
