FFX4 FD080-7-27-08

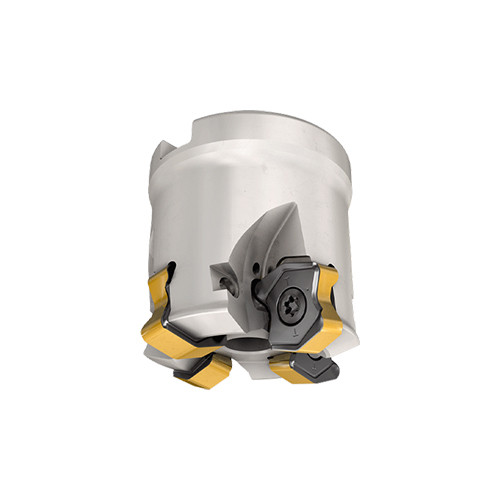

Face mills carrying double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets and face milling.

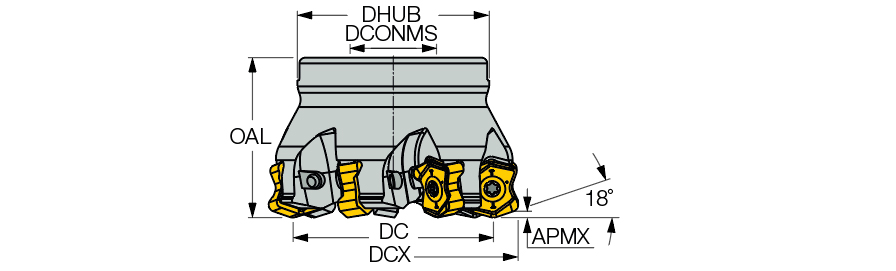

| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | FFX4 XNMU 080620T |
| Cutting Diameter (DC) | 64.4 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 80 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 7 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2 mm | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 18 Degrees |
| Hub Diameter (DHUB) | 60 mm | Unit | M |
| Arbor Style | B |
Product Features
| Family Description | Face mills carrying double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets and face milling. | FamilyName | FFX4 FD-08 |
| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius programming for insert XNMU 3.9 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.0990
Name
Indexable Face Mills
FamilyName
FFX4 FD-08
BrandName
Iscar
