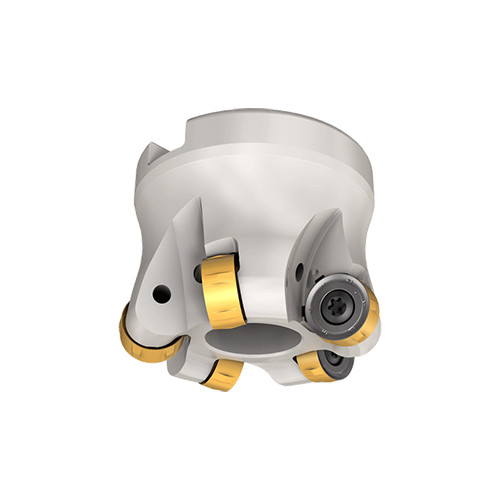

RDS FR D080-08-27-12
Face mills carrying double-sided round inserts with 12 cutting edges

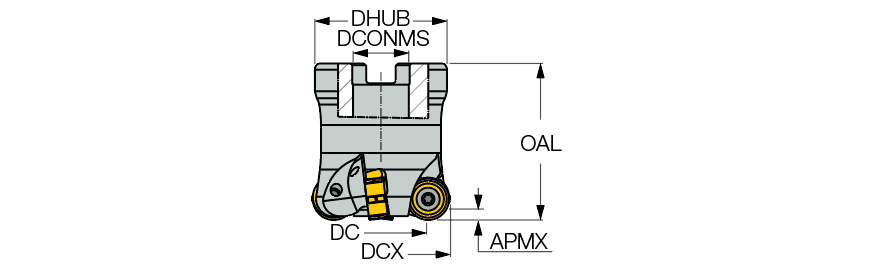

| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | RDS RNMU1255EN-HP |
| Cutting Diameter (DC) | 67.9 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 80 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2.5 mm | Application | | Facing | Helical Interpolation | Profiling | Rampdown | |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Type | Round corner cutters |
| Hub Diameter (DHUB) | 60 mm | Unit | M |
| Arbor Style | A |
Product Features
| Family Description | Face mills carrying double-sided round inserts with 12 cutting edges | FamilyName | RDS FR-12 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.1190
Name
Indexable Face Mills
FamilyName
RDS FR-12
BrandName
Iscar
