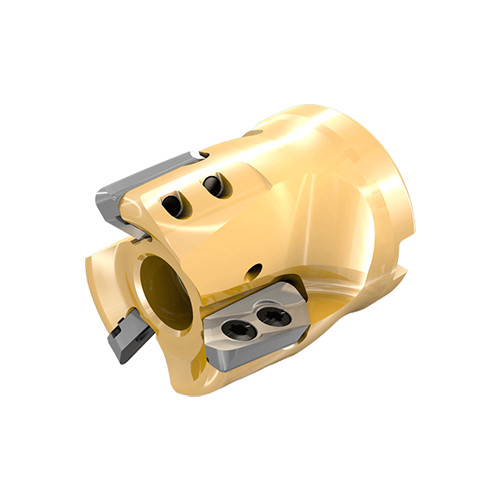

HSM90S FAL-D2.0-2-.75-22
90° face mills carrying HSM90S APCR 2207... inserts for machining aluminum at high rotation speeds. A special pocket design improves its resistance to centrifugal forces

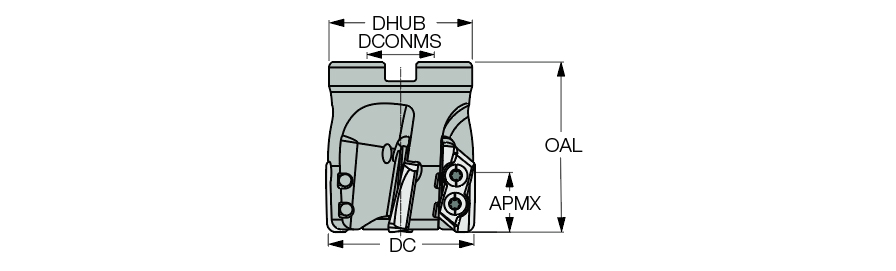

| Cutting Diameter (DC/DCX) | 2″ | Master Insert Identification (MIID) | HSM90S APCR 220708R-P |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 2 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.866″ | Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.24″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 1.85″ | Unit | I |
| Arbor Style | A |
Product Features
| Family Description | 90° face mills carrying HSM90S APCR 2207... inserts for machining aluminum at high rotation speeds. A special pocket design improves its resistance to centrifugal forces | FamilyName | HSM90S FAL-22 |
| Remarks | When machining at very high cutting speeds (RPM>15000) and replacing the insert, it is also recommended to replace the screw For adaptation, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0014
Name
Indexable Face Mills
FamilyName
HSM90S FAL-22
BrandName
Iscar
