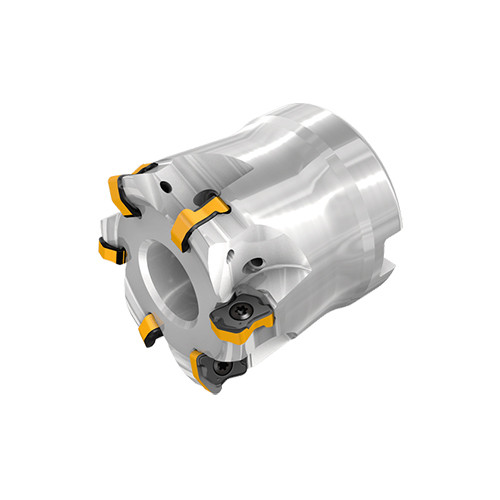

FFX4 FD032-5-16-04
Face mills carrying double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets and face milling.

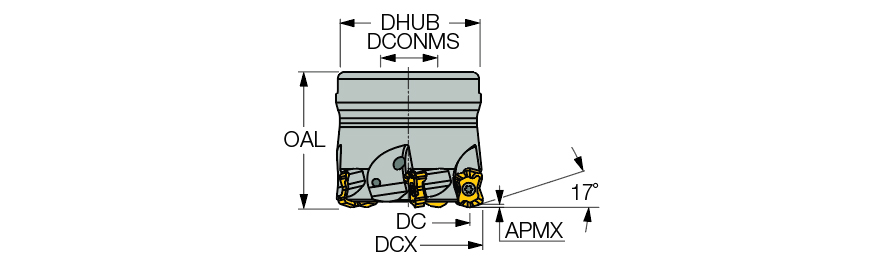

| Cutting Diameter (DC/DCX) | 32 mm | Master Insert Identification (MIID) | FFX4 XNMU 040310T |
| Cutting Diameter (DC) | 24.6 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 32 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.8 mm | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Hub Diameter (DHUB) | 38 mm | Unit | M |
| Arbor Style | A |
Product Features
| Family Description | Face mills carrying double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets and face milling. | FamilyName | FFX4 FD-04 |
| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius for programming: for insert XNMU 1.8 mm, for insert XNMW 1.72 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.3020
Name
Indexable Face Mills
FamilyName
FFX4 FD-04
BrandName
Iscar
