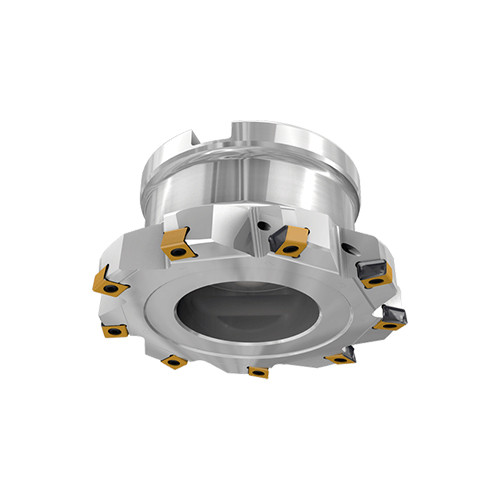

HTF D5.0-09-1.50-R-LN10
Face mills carrying tangentially clamped inserts with 4 cutting edges for extra fine milling applications.

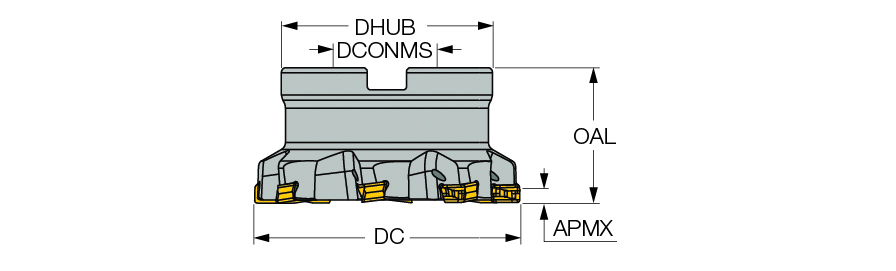

| Cutting Diameter (DC/DCX) | 5″ | Master Insert Identification (MIID) | HTP LNAR 1006 FR |
| Cutting Diameter (DC) | 5″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 9 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.0177″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Application | | Facing | Shouldering | |
| Overall Length (OAL) | 2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 3.8″ | Unit | I |
| Arbor Style | B |
Product Features
| Family Description | Face mills carrying tangentially clamped inserts with 4 cutting edges for extra fine milling applications. | FamilyName | HTF-R-LN10 |
| Remarks | For adaptation, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
6.2060
Name
Indexable Face Mills
FamilyName
HTF-R-LN10
BrandName
Iscar
