HTF D080-07-27-R-LN10

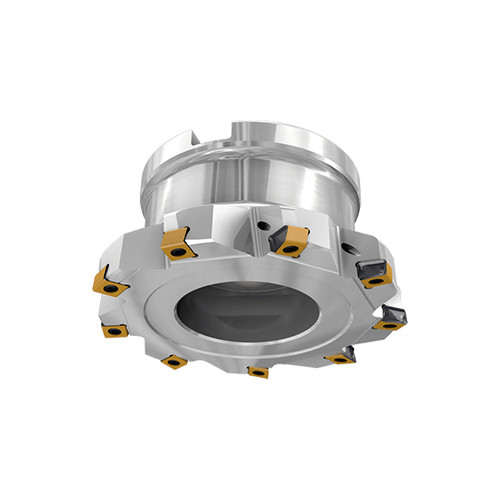

Face mills carrying tangentially clamped inserts with 4 cutting edges for extra fine milling applications.

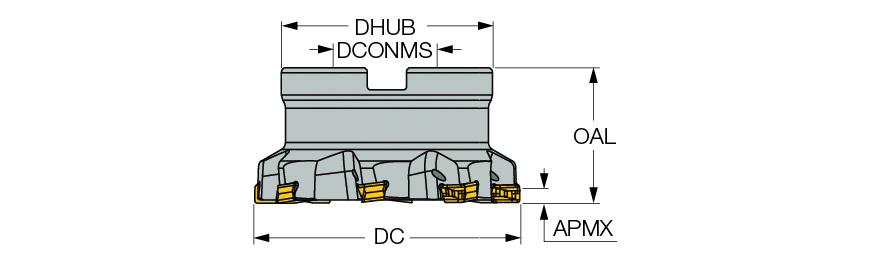

| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | HTP LNAR 1006 FR |
| Cutting Diameter (DC) | 80 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.35 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Application | | Facing | Shouldering | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 60 mm | Unit | M |
| Arbor Style | B |
Product Features
| Family Description | Face mills carrying tangentially clamped inserts with 4 cutting edges for extra fine milling applications. | FamilyName | HTF-R-LN10 |

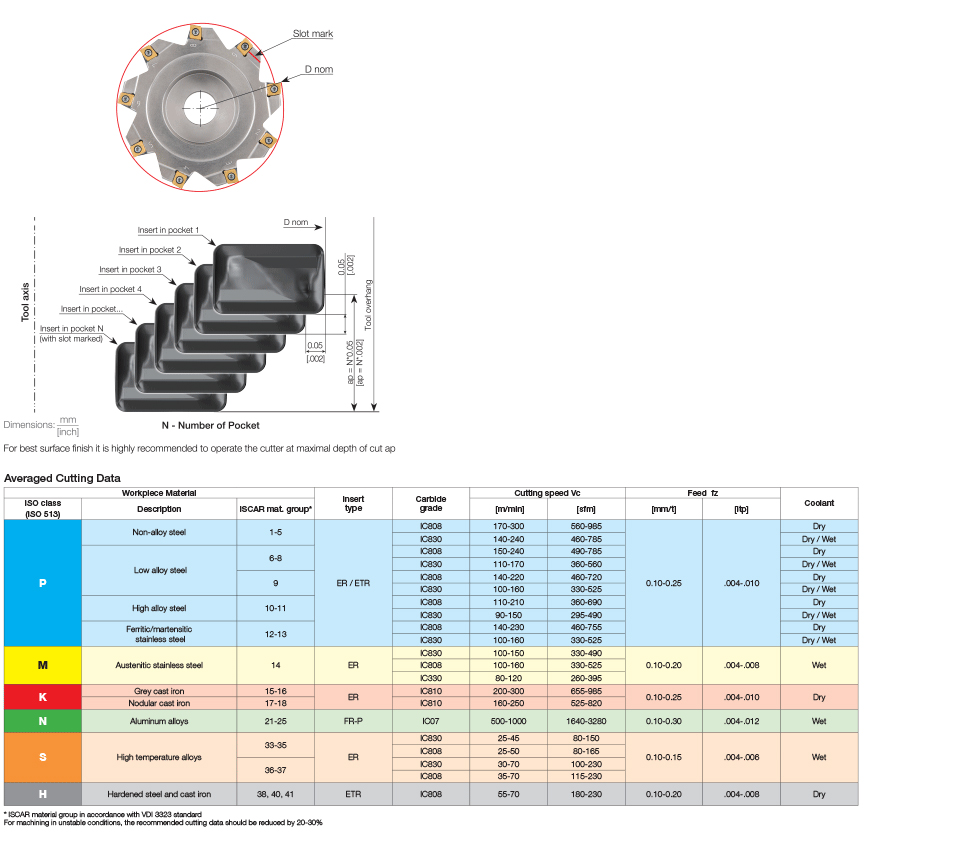

| Remarks | For best surface finish it is highly recommended to operate the cutter at maximal depth of cut For user guide, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.9380
Name
Indexable Face Mills
FamilyName
HTF-R-LN10
BrandName
Iscar
