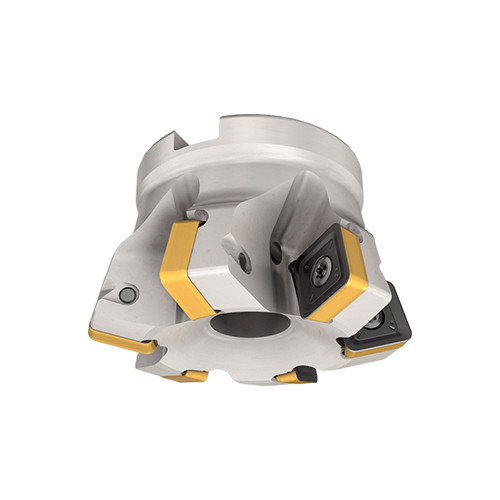

FFQ4 D6.00-10-2.00-17
Fast feed face mills carrying single-sided inserts with 4 cutting edges.

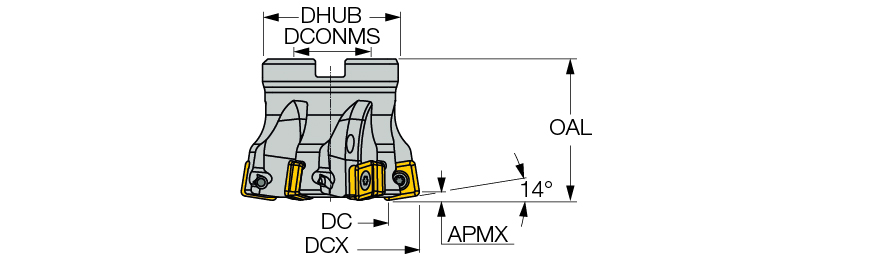

| Cutting Diameter (DC/DCX) | 6″ | Arbor Style | B |
| Cutting Diameter (DC) | 4.85″ | Master Insert Identification (MIID) | FFQ4 SOMT 170625T |
| Cutting Diameter Maximum (DCX) | 6″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 10 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.118″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 2″ | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Overall Length (OAL) | 2-1/2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 5″ | Unit | I |
Product Features
| Family Description | Fast feed face mills carrying single-sided inserts with 4 cutting edges. | FamilyName | FFQ4 D-17 |

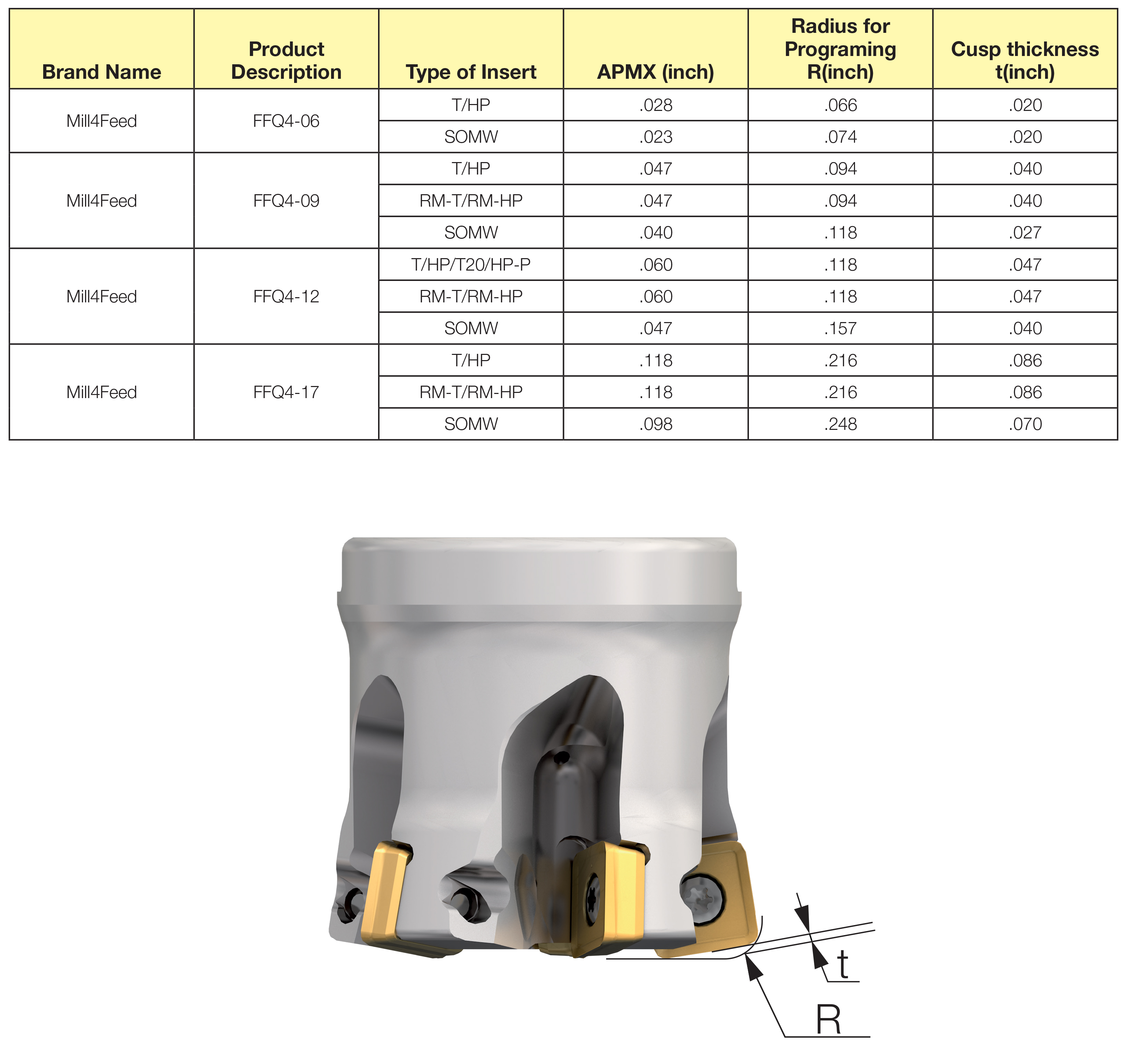

| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius for programming: for insert SOMT .217 for insert SOMW .252 When mounting insert SOMW, APMX=.098 For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% For cutting conditions click on More info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
11.0231
Name
Indexable Face Mills
FamilyName
FFQ4 D-17
BrandName
Iscar
