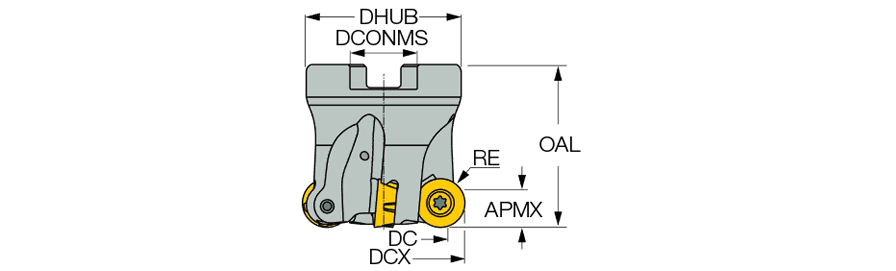

| Cutting Diameter (DC/DCX) | 40 mm | Arbor Style | A |
| Cutting Diameter (DC) | 28 mm | Master Insert Identification (MIID) | RP...X 1204M0 ... |
| Cutting Diameter Maximum (DCX) | 40 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 4 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 3.8 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | Facing | Plunging & Recessing | Profiling | Rampdown | |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 38 mm | Unit | M |
Product Features

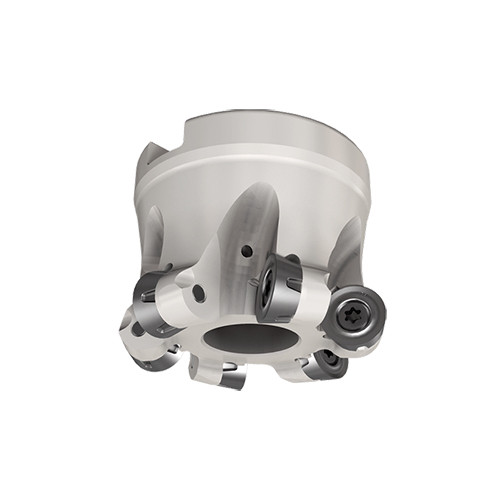

| Family Description | Face mills for machining 3D surfaces of turbomachinery blades | FamilyName | FRMT |
| Remarks | For adaptation, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.3070
Name
Indexable Face Mills
FamilyName
FRMT
BrandName
Iscar
