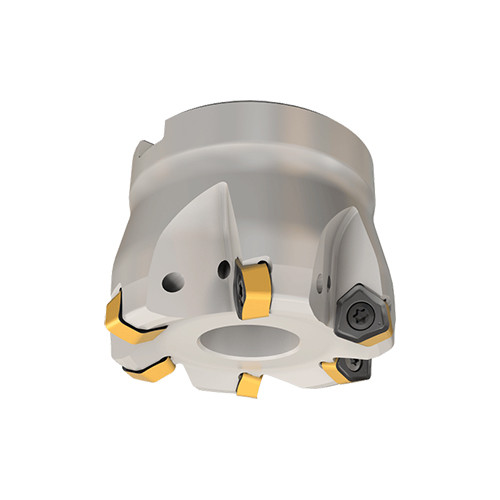

FF FWX D4.00-08-1.50-07
Fast feed face mills carrying double-sided Inserts with 6 cutting edges (HELIDO UPFEED LINE).

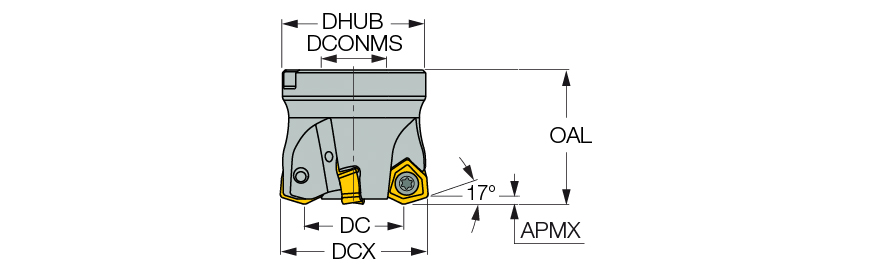

| Cutting Diameter (DC/DCX) | 4″ | Master Insert Identification (MIID) | H600 WXCU 070515HP |
| Cutting Diameter (DC) | 3.488″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 4″ | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.059″ | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2″ | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Hub Diameter (DHUB) | 3.11″ | Tool Type | Fast Feed Face mill |
| Arbor Style | B | Unit | I |
Product Features
| Family Description | Fast feed face mills carrying double-sided Inserts with 6 cutting edges (HELIDO UPFEED LINE). | FamilyName | FF FWX |

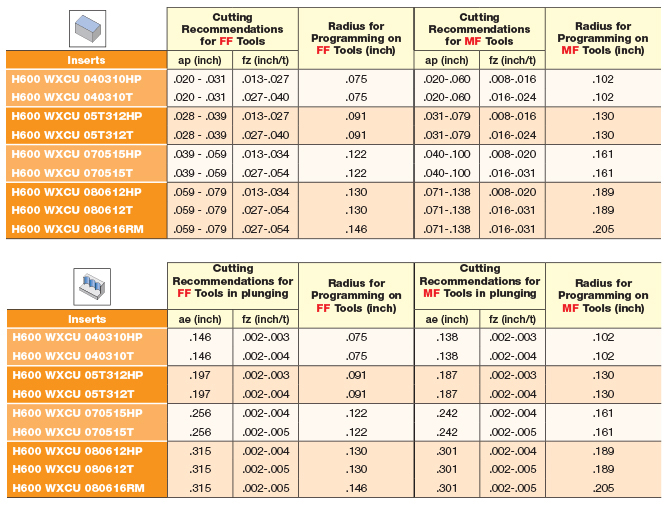

| Remarks | For machining recommendations, radius for programming and adaptation click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
3.7897
Name
Indexable Face Mills
FamilyName
FF FWX
BrandName
Iscar
