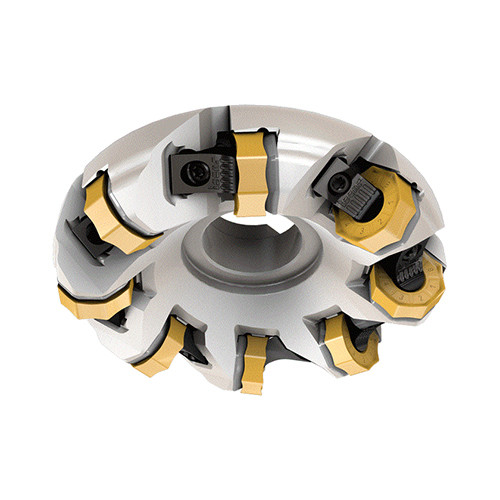

SOF45WG D250-12-60-R26
Heavy duty 45° face mills carrying wedge clamped square or octagonal double-sided inserts with 8/16 cutting edges

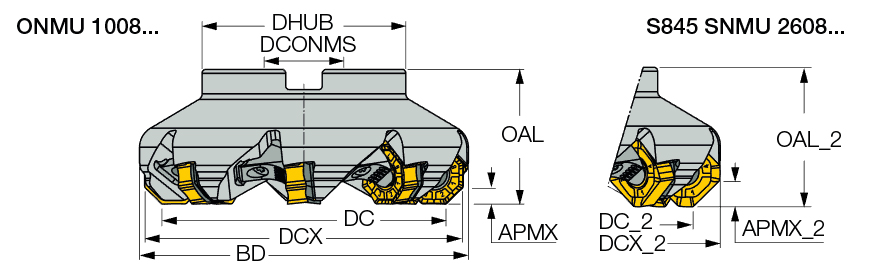

| Cutting Diameter (DC/DCX) | 268.8 mm | Master Insert Identification (MIID) | ONMU 100816-N-HL |
| Cutting Diameter (DC) | 254.1 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 268.8 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 12 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 7 mm | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 60 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Tool Cutting Edge Angle (KAPR) | 44 Degrees |
| Hub Diameter (DHUB) | 180 mm | Tool Type | 45° Facemills |
| Arbor Style | C | Unit | M |
Product Features
| Family Description | Heavy duty 45° face mills carrying wedge clamped square or octagonal double-sided inserts with 8/16 cutting edges | FamilyName | SOF45WG-R26 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
13.9590
Name
Indexable Face Mills
FamilyName
SOF45WG-R26
BrandName
Iscar
