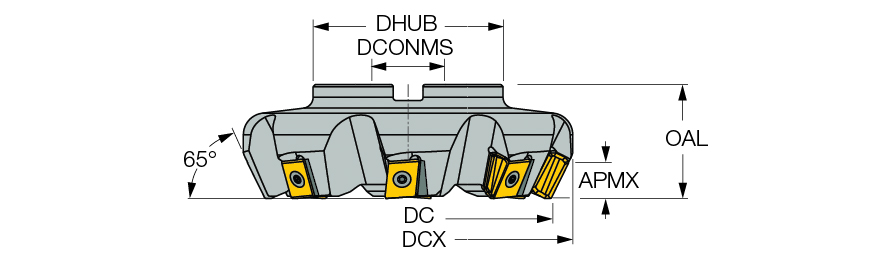

| Cutting Diameter (DC/DCX) | 218.8 mm | Master Insert Identification (MIID) | T465 LNHT 2212-ZNTR |
| Cutting Diameter (DC) | 200 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 218.8 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 10 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 19 mm | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 60 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Tool Cutting Edge Angle (KAPR) | 65 Degrees |
| Hub Diameter (DHUB) | 135 mm | Tool Type | 60°-65° Facemills |
| Arbor Style | C | Unit | M |
Product Features

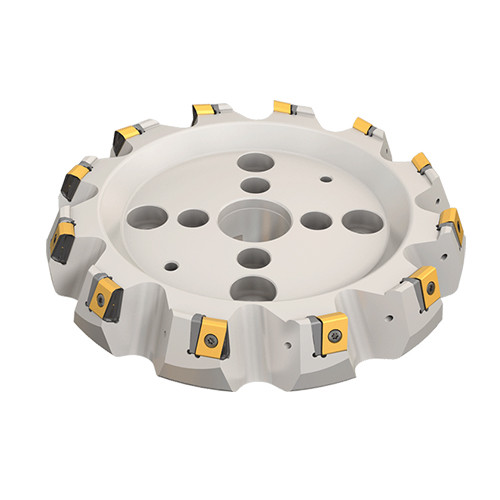

| Family Description | HELITANG T465 Line, 65° face mills carrying tangentially clamped inserts with 4, 22 mm long cutting edges. Used for machining large parts such as those found in marine industries, power generation and other heavy industry applications. | FamilyName | T465 FLN-22ST |
| Remarks | For more details, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
8.8370
Name
Indexable Face Mills
FamilyName
T465 FLN-22ST
BrandName
Iscar
