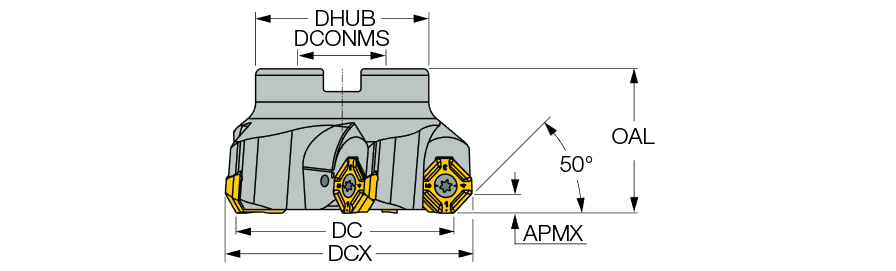

| Cutting Diameter (DC/DCX) | 169.4 mm | Master Insert Identification (MIID) | IQ845 SYHU 0704ADN |
| Cutting Diameter (DC) | 160 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 169.4 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 15 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 4.6 mm | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Tool Cutting Edge Angle (KAPR) | 50 Degrees |
| Hub Diameter (DHUB) | 92 mm | Tool Type | 45° Facemills |
| Arbor Style | C | Unit | M |
Product Features

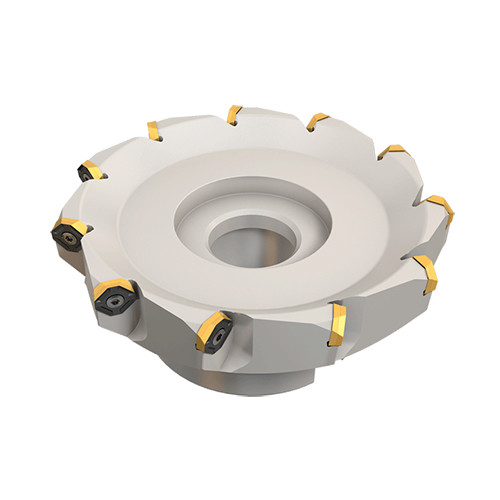

| Family Description | 50° face mills carrying screw clamped square Inserts with 8 cutting edges. Feature very rigid dove tail clamping and positive pocket orientation. | FamilyName | IQ845 FSY-R07 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
3.7400
Name
Indexable Face Mills
FamilyName
IQ845 FSY-R07
BrandName
Iscar
