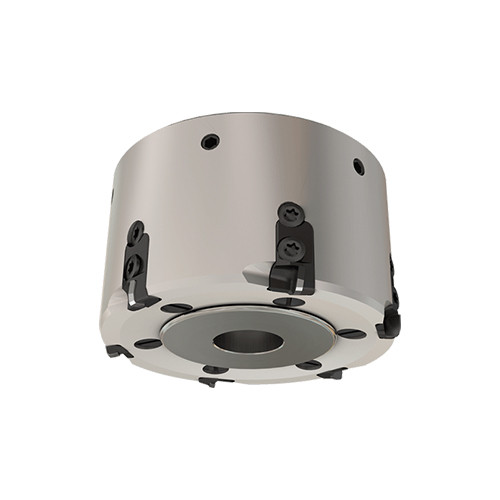

SPM D063-05-22R-CA

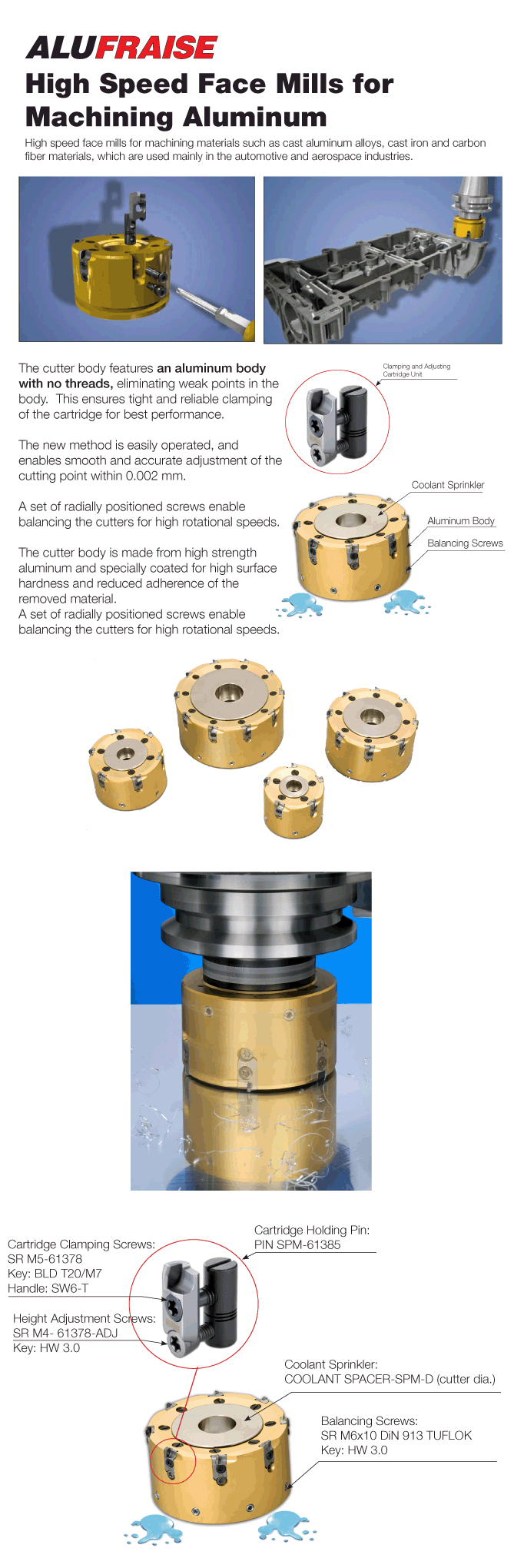

Face mills with adjustable cartridges for high speed machining of aluminum alloys, cast iron and carbon fiber. Lightweight body, user-friendly adjustment system, easy axial edge positioning for up to 0.002 mm accuracy, convenient balancing.

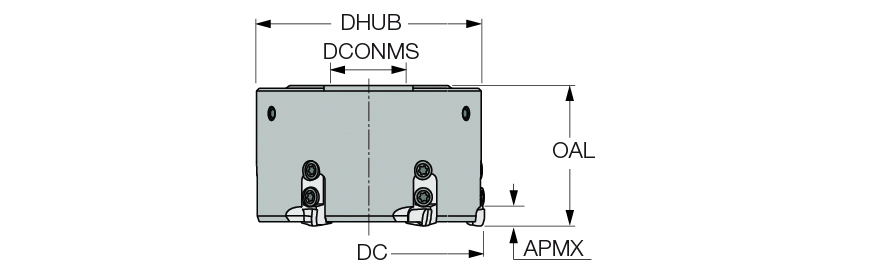

| Cutting Diameter (DC/DCX) | 65.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 65.5 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2.5 mm | Application | | Facing | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 63 mm | Tool Type | 90° Facemills for Al. & HTA |
| Master Insert Identification (MIID) | CA-SPM-75RM | Unit | M |
Product Features
| Family Description | Face mills with adjustable cartridges for high speed machining of aluminum alloys, cast iron and carbon fiber. Lightweight body, user-friendly adjustment system, easy axial edge positioning for up to 0.002 mm accuracy, convenient balancing. | FamilyName | SPM-D-CA |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.5950
Name
Indexable Face Mills
FamilyName
SPM-D-CA
BrandName
Iscar
