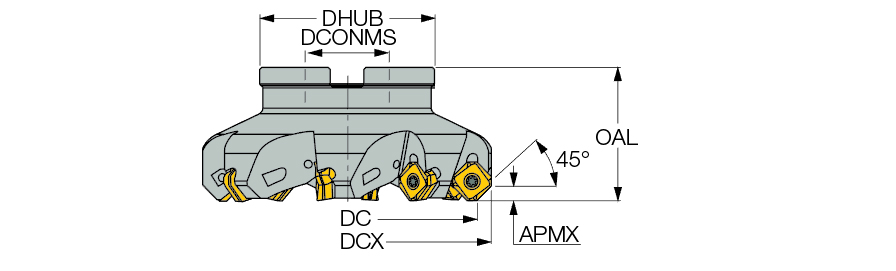

| Cutting Diameter (DC/DCX) | 8.58″ | Master Insert Identification (MIID) | S845 SXMU 1606ADTR |
| Cutting Diameter (DC) | 8″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 8.58″ | Body Material | Steel |
| Cutting Item Count (CICT) | 12 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.276″ | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 2-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Hub Diameter (DHUB) | 5.31″ | Tool Type | 45° Facemills |
| Arbor Style | C | Unit | I |
Product Features

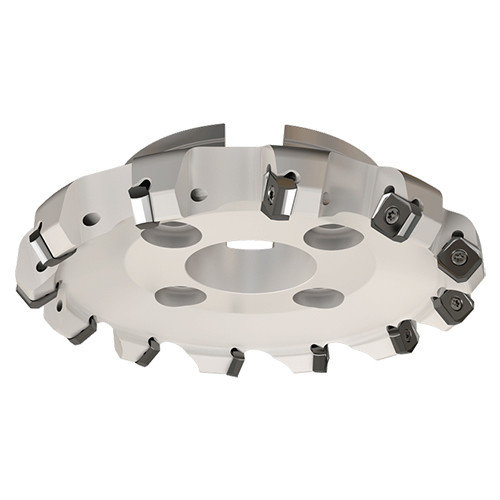

| Family Description | 45° face mills, featuring very rigid clamping, carrying inserts with 8 helical, right-hand cutting edges, providing a very economical solution (HELIDO845). | FamilyName | S845 F45SX-16 |
| Remarks | For adaptation, click on More Info. Wiper inserts are used on face mill cutters, provide improved surface finish, eliminate the use of ot her finishing cutters. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
13.1307
Name
Indexable Face Mills
FamilyName
S845 F45SX-16
BrandName
Iscar
