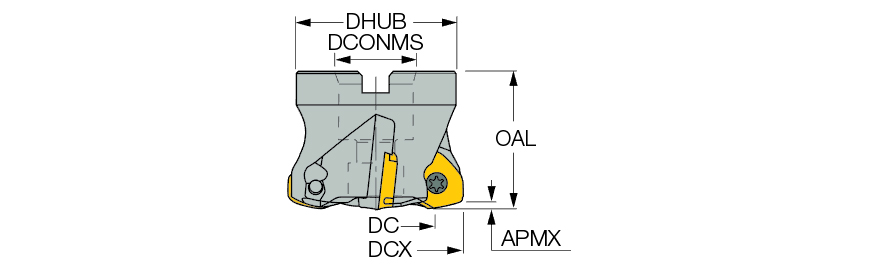

| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | FF WOMT0602 |
| Cutting Diameter (DC) | 36 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 50 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 1.2 mm | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Tool Cutting Edge Angle (KAPR) | 13 Degrees |
| Hub Diameter (DHUB) | 48 mm | Tool Type | Fast Feed Face mill |
| Arbor Style | A | Unit | M |
Product Features
| Family Description | FEEDMILL, fast feed face mills using FF WOMT... inserts. Can run at very high feed rates of up to 1.5 mm/t at small DOC, resulting in very high metal removal rates. | FamilyName | FF FW |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.4420
Name
Indexable Face Mills
FamilyName
FF FW
BrandName
Iscar
