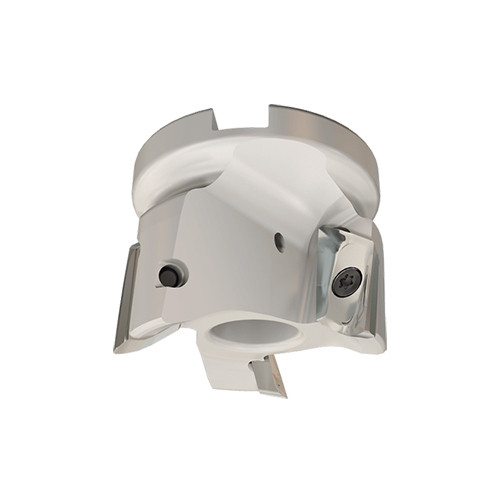

HM90 FAL-D063-27-22
Face mills carrying HM90 APCR 2206... inserts for machining aluminum.

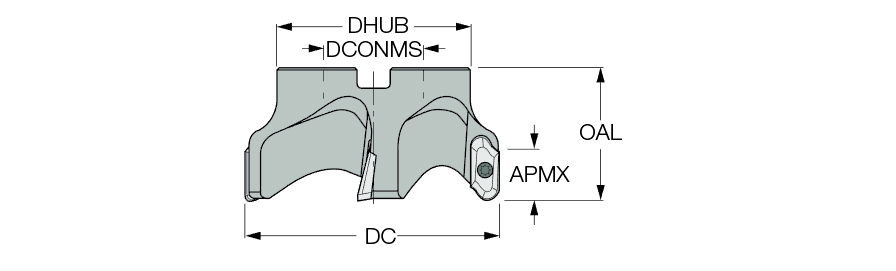

| Cutting Diameter (DC/DCX) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 63 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 20 mm | Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 62 mm | Tool Type | 90° Facemills for Al. & HTA |
| Arbor Style | A | Unit | M |
| Master Insert Identification (MIID) | HM90 APCR 220605R-P |
Product Features
| Family Description | Face mills carrying HM90 APCR 2206... inserts for machining aluminum. | FamilyName | HM90 FAL-22 |
| Remarks | D.O.C. changes according to insert radius APMX 20.5 is the value for HM90 APCR220650 Insert tightening torque: 6 Nxm When using this cutter with a 6.4 mm radius insert, the seat must be changed to assure the insert's compatibility with the tool | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.6730
Name
Indexable Face Mills
FamilyName
HM90 FAL-22
BrandName
Iscar
