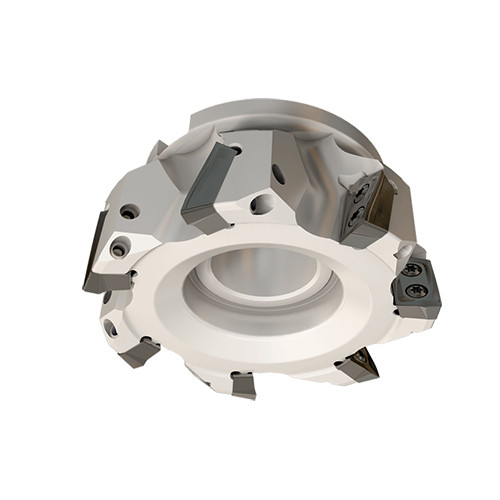

HP F90AT D63-5-25.4-22
90° face mills carrying HP AD.. 2207... long edged inserts.

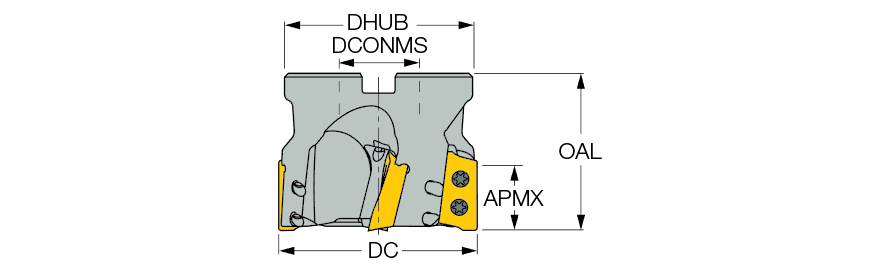

| Cutting Diameter (DC/DCX) | 63 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 63 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 21 mm | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 59.2 mm | Tool Type | 90° Facemills |
| Arbor Style | A | Unit | M |
| Master Insert Identification (MIID) | HP ADCT 2207PDR |
Product Features
| Family Description | 90° face mills carrying HP AD.. 2207... long edged inserts. | FamilyName | HP F90AT-22 |
| Remarks | Insert clamping/unclamping procedure: First loosely attach the rear clamping screw, then the face screw. In the same order, tighten them both. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.6770
Name
Indexable Face Mills
FamilyName
HP F90AT-22
BrandName
Iscar
