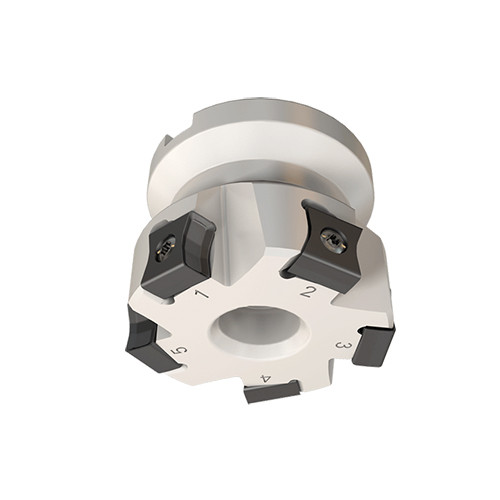

F90LN D5.00-10-1.50-R-N11
90° face mills carrying LN..1106... tangentially clamped inserts.
| Cutting Diameter (DC/DCX) | 5″ | Master Insert Identification (MIID) | LNHT 1106PN-N HT |
| Cutting Diameter (DC) | 5″ | Body Material | Steel |
| Cutting Item Count (CICT) | 10 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.394″ | Application | | Facing | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 3.74″ | Tool Type | 90° Facemills |
| Arbor Style | B | Unit | I |
Product Features
| Family Description | 90° face mills carrying LN..1106... tangentially clamped inserts. | FamilyName | F90LN-N11 |
| Remarks | For profile of machined wall, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
5.5865
Name
Indexable Face Mills
FamilyName
F90LN-N11
BrandName
Iscar
