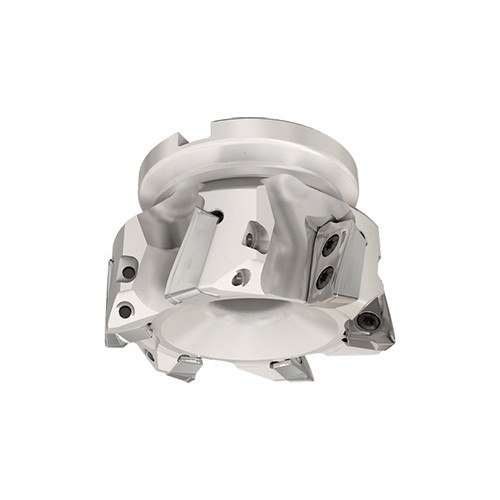

HP F90AT D2.0-3-.75-22
90° face mills carrying HP AD.. 2207... long edged inserts.

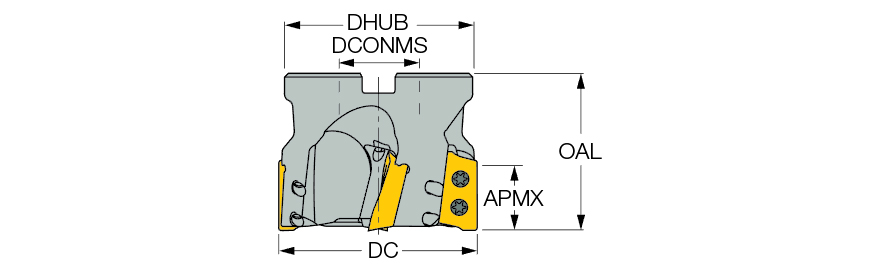

| Cutting Diameter (DC/DCX) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 2″ | Body Material | Steel |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.827″ | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 2″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 1.89″ | Tool Type | 90° Facemills |
| Arbor Style | A | Unit | I |
| Master Insert Identification (MIID) | HP ADCT 2207PDR |
Product Features
| Family Description | 90° face mills carrying HP AD.. 2207... long edged inserts. | FamilyName | HP F90AT-22 |
| Remarks | Insert clamping/unclamping procedure: First loosely attach the rear clamping screw, then the face screw. In the same order, tighten them both. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.2610
Name
Indexable Face Mills
FamilyName
HP F90AT-22
BrandName
Iscar
