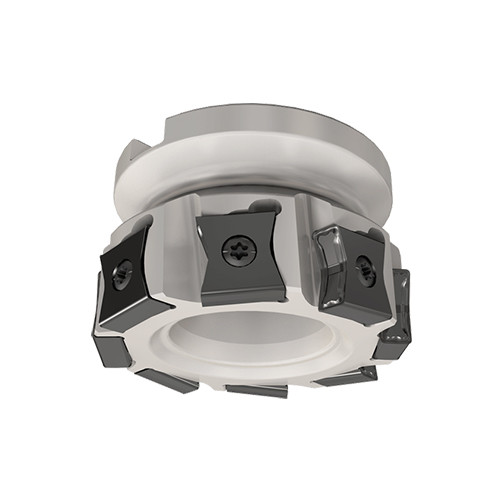

F90LN D080-07-27-R-N15
90° face mills carrying LN..1506... tangentially clamped inserts.

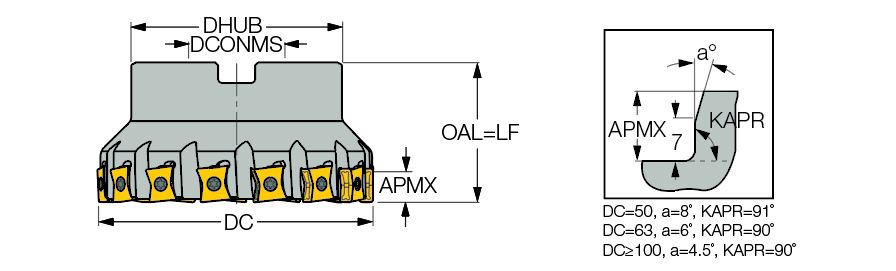

| Cutting Diameter (DC/DCX) | 80 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 80 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 7 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 14 mm | Application | | Facing | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 70 mm | Tool Type | 90° Facemills |
| Arbor Style | B | Unit | M |
| Master Insert Identification (MIID) | LNKX 1506PN-N PL |
Product Features
| Family Description | 90° face mills carrying LN..1506... tangentially clamped inserts. | FamilyName | F90LN-N15 |
| Remarks | Note: Left-hand cutters are designated by a red groove For profile of machined wall, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.1570
Name
Indexable Face Mills
FamilyName
F90LN-N15
BrandName
Iscar
