ETS D1.46-0.62-W1.25-XN13

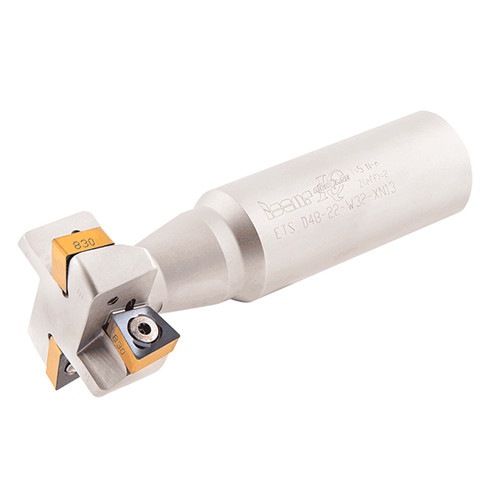

T-slot endmills carrying XNMU 1306 square inserts with 4 right- and 4 left-hand cutting edges.

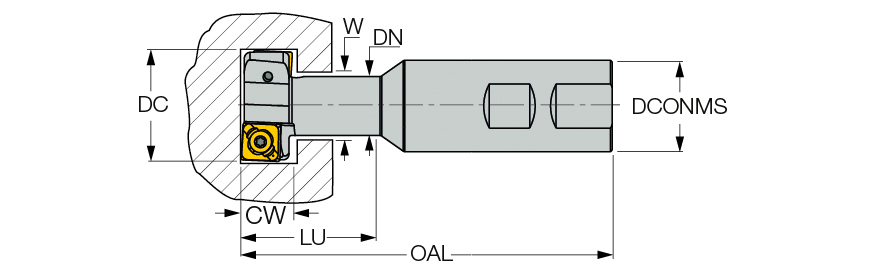

| Cutting Diameter (DC) | 1.45″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.314″ | Tool Type | Double-sided slotting cutters |
| Flute Count (NOF) | 2 | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 1 | Functional Length (LF) | 3.359″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Master Insert Identification (MIID) | XNMU 130608PNTN |
| Overall Length (OAL) | 4-1/2″ | Connection Code Machine Side (CCMS) | Weldon |
| Usable Length (LU) | 1.695″ | Unit | I |
| Shank Type | Weldon | Neck Diameter (DN) | 0.772″ |
| Application | | Bottom Shouldering | Side Slotting | T Slotting | |
Product Features
| Family Description | T-slot endmills carrying XNMU 1306 square inserts with 4 right- and 4 left-hand cutting edges. | FamilyName | ETS-XN13 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.3228
Name
Disc w/Shank Indexable Slotting Cutters
FamilyName
ETS-XN13
BrandName
Iscar
