SDN D200-1723-50-CALN13
Full slot adjustable slotting cutters with cartridges carrying tangentially mounted T490 LNHT 1306PNTR/L inserts. Each cutter body can be changed into full slot, bottom or top milling configuration, by mounting the cartridges accordingly.

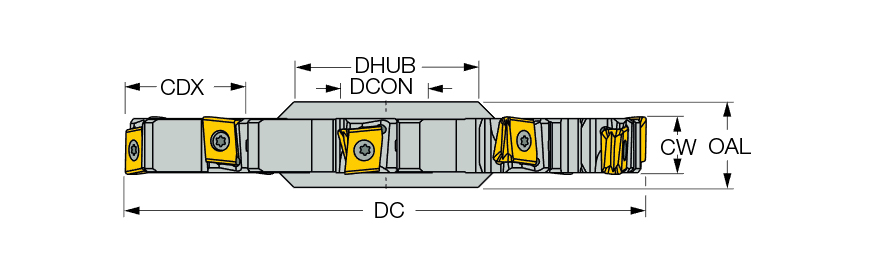

| Cutting Diameter (DC) | 201 mm | Overall Length (OAL) | 26 mm |
| Cutting Item Count (CICT) | 14 | Master Insert Identification (MIID) | T490 LNHT 1306PNTR |
| Peripheral Effective Cutting Edge Count (ZEFP) | 7 | Application | | Bottom Shouldering | Shouldering | Side Slotting | Slotting | |
| Cutting Depth Maximum (CDX) | 61 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 70 mm | Measurement Type | Metric |
| Cutting Width Maximum (CWX) | 23 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 17.5 mm | Connection Code Machine Side (CCMS) | Disk type |
| Flute Count (NOF) | 14 | Unit | M |
Product Features
| Family Description | Full slot adjustable slotting cutters with cartridges carrying tangentially mounted T490 LNHT 1306PNTR/L inserts. Each cutter body can be changed into full slot, bottom or top milling configuration, by mounting the cartridges accordingly. | FamilyName | SDN-CALN13 |
| Remarks | Each cutter body can be changed into full slot, bottom or top milling configuration by mounting the cartridges accordingly Half of the inserts are used on right-hand cartridges and half on left-hand cartridges Gang-mill assembly SDN and left-hand SSB cutters feature two keyways To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position. For cartridge details, see page | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
3.4180
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
SDN-CALN13
BrandName
Iscar
