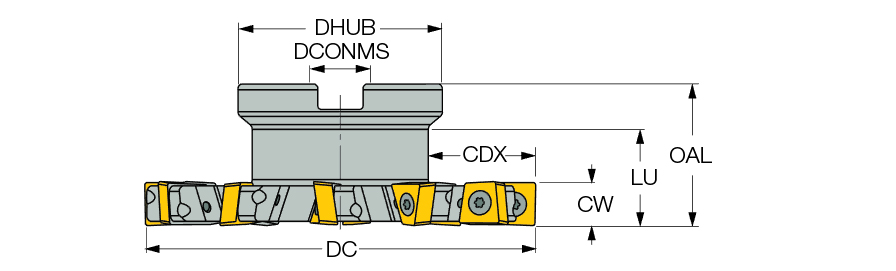

| Cutting Diameter (DC) | 200 mm | Overall Length (OAL) | 63 mm |
| Cutting Item Count (CICT) | 16 | Master Insert Identification (MIID) | XNMU 1306 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 8 | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |

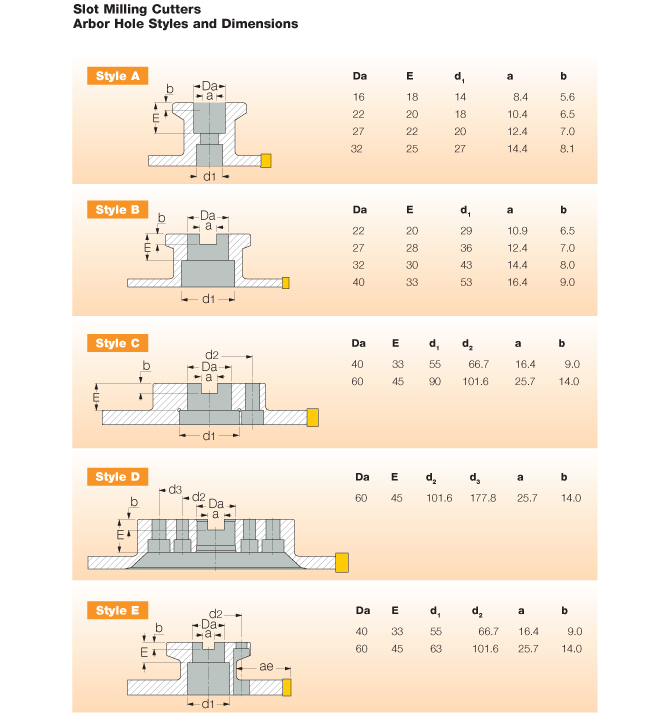

| Depth of Cut Maximum (APMX) | 20 mm | Arbor Style | C |
| Cutting Depth Maximum (CDX) | 53 mm | Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 92 mm | Body Material | Steel |
| Cutting Width (CW) | 20 mm | Unit | M |
| Flute Count (NOF) | 16 |
Product Features

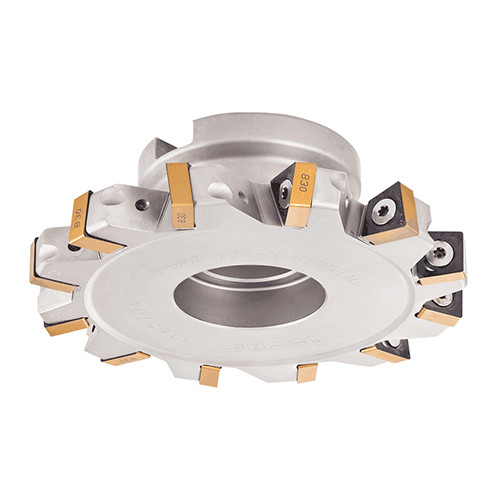

| Family Description | Full slot flange type, slotting cutters carrying XNMU 1306 square inserts with 4 right- and 4 left-hand cutting edges. | FamilyName | FDN-XN13 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
4.0870
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
FDN-XN13
BrandName
Iscar
