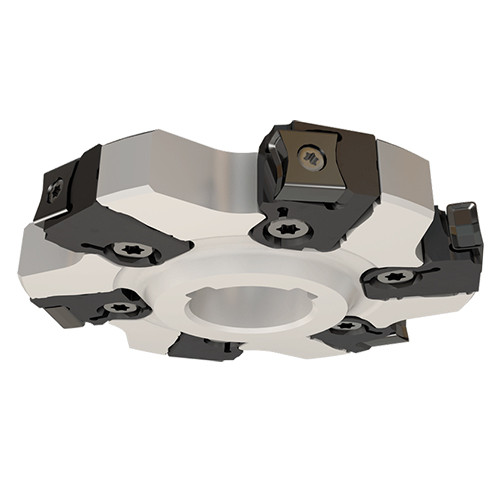

SDN D125-1419-40-CALN11
Full slot adjustable slotting cutters with cartridges carrying LNMT 1106... inserts, 14-19.5 mm width range (TANGMILL).
| Cutting Diameter (DC) | 125 mm | Overall Length (OAL) | 20 mm |
| Cutting Item Count (CICT) | 8 | Master Insert Identification (MIID) | LNKX 1106PN-N MM |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | |
| Cutting Depth Maximum (CDX) | 31.5 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 56 mm | Measurement Type | Metric |
| Cutting Width Maximum (CWX) | 19.5 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 14 mm | Connection Code Machine Side (CCMS) | Disk type |
| Flute Count (NOF) | 8 | Unit | M |
Product Features
| Family Description | Full slot adjustable slotting cutters with cartridges carrying LNMT 1106... inserts, 14-19.5 mm width range (TANGMILL). | FamilyName | SDN-CALN11 |
| Remarks | Each cutter body can be changed into full slot, bottom or top milling configuration by mounting the cartridges accordingly Half of the inserts are used on right-hand cartridges and half on left-hand cartridges Gang-mill assembly SDN and left-hand SSB cutters feature two keyways To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.2520
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
SDN-CALN11
BrandName
Iscar
