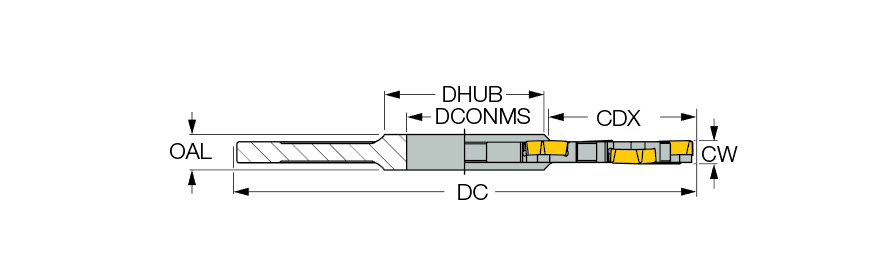

| Cutting Diameter (DC) | 200 mm | Overall Length (OAL) | 14 mm |
| Cutting Item Count (CICT) | 20 | Master Insert Identification (MIID) | LNET 126504-TN |
| Peripheral Effective Cutting Edge Count (ZEFP) | 10 | Application | | Bottom Shouldering | Side Slotting | Slotting | |
| Cutting Depth Maximum (CDX) | 62.5 mm | Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 69 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 12 mm | Connection Code Machine Side (CCMS) | Disk type |
| Cutting Width Minimum (CWN) | 10 mm | Unit | M |
| Flute Count (NOF) | 20 |
Product Features

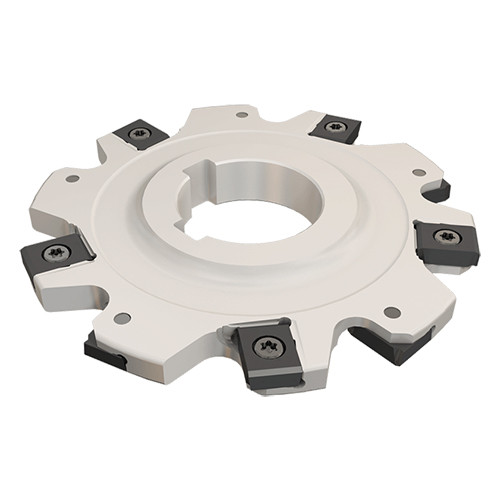

| Family Description | Full slot disk type slotting cutters carrying LNET 12 tangentially mounted inserts. Narrow slots save workpiece material. A very effective solution for parting at high speeds quality parts such as bearing caps. | FamilyName | SDN-LN12 |
| Remarks | Each tool is supplied with screws for the thinnest specified insert; verify use of the correct screw for the insert being used For more than one insert option, slot width depends on the selected insert width Gang-mill assembly SDN and left-hand SSB cutters feature two keyways To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position. For user guide, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.1090
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
SDN-LN12
BrandName
Iscar

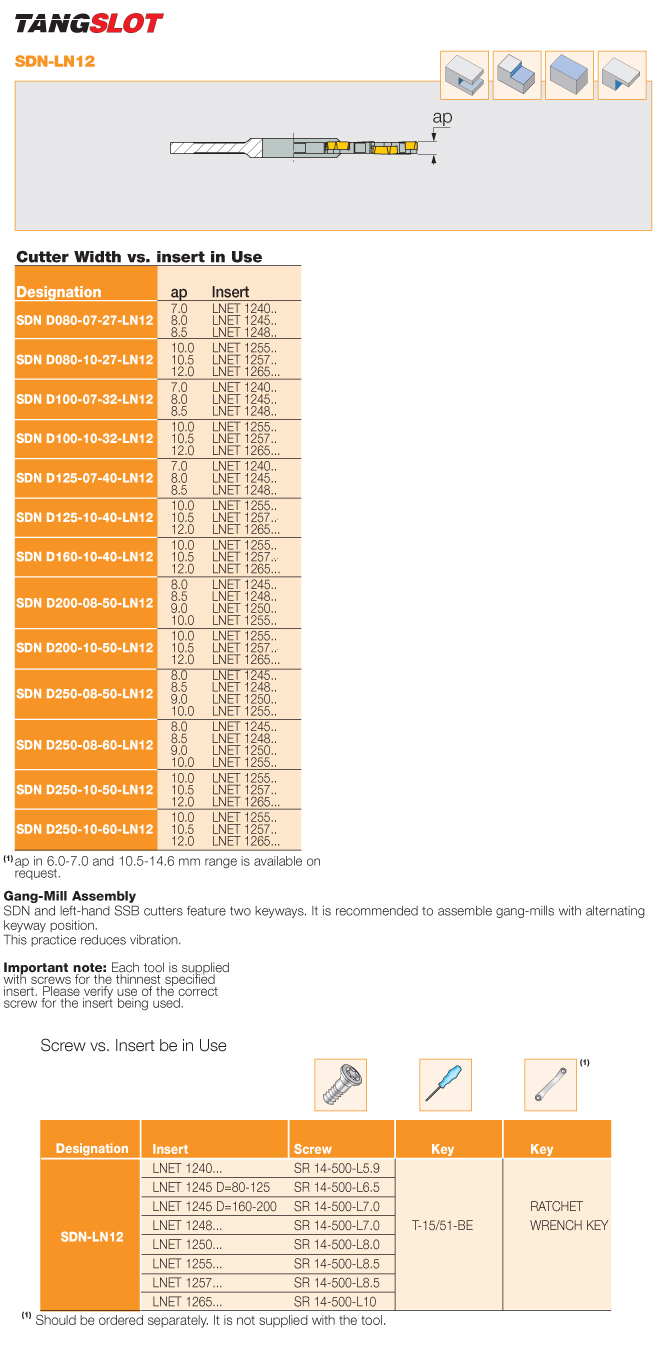

Related Documentation
Ap in 6.0-7.0 and 10.5-13.3 mm ranges is available on request. Each tool is supplied with screws for the thinnest specified insert. Please verify use of correct screw for the insert being used.
